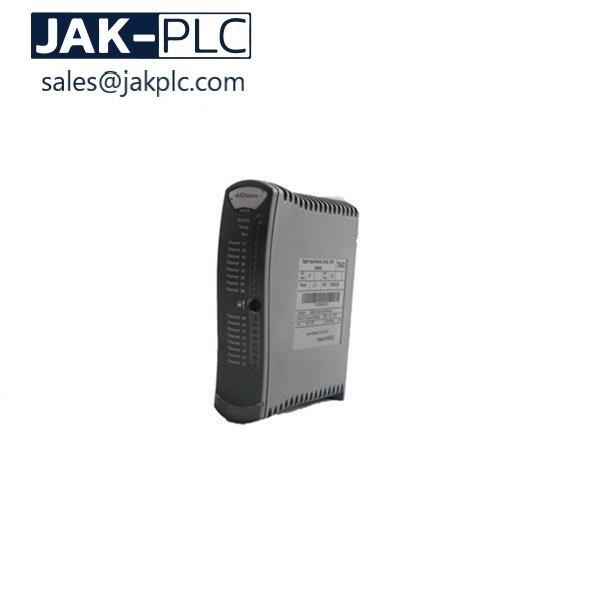

100% Original ICS TRIPLEX T3481 Module

Fast delivery ICS Triplex T3481 Module

Description

The Fail relay stays healthy if one of two Processors goes faulty and loses one slice but theother Processor takes over and goes active. If neither Processor is active with two workingslices a Fail signal is generated indicating that the system has shut down. The Fail signaldrives relay RL2 NC contacts open.The Fail and Fault relay NC contact signals are routed through SK1 to the TMR ProcessorInterface Adapter to connectors J2 and J3.

Two IRIG-B input standards are available to the Processor; IRIG-B002 and IRIG-B122. Thestandard used by the Processor is controlled by software setting a flag in the memory. TheIRIG-B signals are used to synchronise systems and time-stamp entries in the Sequence ofEvents (SOE) log.Three serial communication options are available from the 4-channel UniversalAsynchronous Receiver/Transmitter (UART). These are detailed as follows:• Channel 0 Front Panel Diagnostic Port (RS232)• Channel 1 Not configured• Channel 2 Communications Serial Port 2 (RS422/485)• Channel 3 Communications Serial Port 3 (RS422/485)The Trusted operating system (Trusted OS) is used in support of the Motorola Power PCseries processor architecture. The real time kernel is a high speed, high functionality kernelmade for fault tolerant distributed systems. The distributed communication is madetransparent over all processors.

Advantage Products

①Allen-Bradley(USA AB)Series

②Schneider(Schneider Electric)Series

③General electric(General Electric)Series

④Westinghouse Series

⑤SIEMENS Series

⑥ABB Robots. FANUC Robots、YASKAWA Robots、KUKA Robots、Mitsubishi Robots、OTC Robots、Panasonic Robots、MOTOMAN Robots.

⑦Westinghouse: OVATION System、WDPF System、MAX1000 system spare parts.

Conversion、I/O Signal processing、Data communication systems?Digital-to-Analogue

⑧Invensys Foxboro I/A Series system，FBM（I/O）SCS、Trapezoidal logic control、Accident recalling、DAC

Invensys Triconex: Redundant fault-tolerant control system、Most modern fault-tolerant controller based on Triple Modular Redundancy (TMR) architecture.

⑨Siemens：Siemens MOORE，?Siemens Simatic C1，Siemens CNC system.
