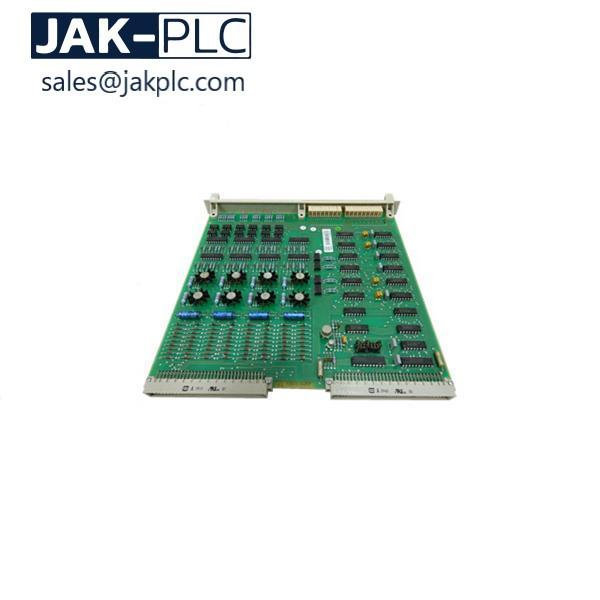

ABB 1912JA001100000 Module In Stock

ABB 1912JA001100000 One Year Warranty

Description

Single point grounding of the Type SLC controller provides an analogand digital DC grounding system free of circulating currents. JumperW106 on the power supply board (Fig. 2-3) connects the DC systemcommon to the AC grounding conductor terminal TB3-2 ( ). JumperW106 can be cut and removed to isolate DC system common fromAC ground.Multiple Controllers If several Type SLC controllers are connected through the module buscommunication link, then the system commons are also connected. Fora single point grounding system, system common must be tied to earthground only at one point. Cut and remove jumper W106 (Fig. 2-3) onthe power supply board of all controllers that are to be linked togethervia the module bus. Use a separate 14 AWG jumper wire to connect theDC system common (TB2-1) of each controller to an isolated systemcommon bus. From one point on the DC system common, use an eightAWG wire to connect to a dedicated earth ground (Fig. 2-4). This dedicated earth ground should connect to the same grounding point asthe AC safety ground (typically the site grounding grid). There shouldbe no more than one-ohm resistance between the DC systemgrounding conductor and the AC safety conductor.

More parts

ABB GPU2000R Generator Protection Unit
ABB GPU200R  4 Channel Analog Input Module
ABB RTXF18/RK926-007-AB  Plc Controller Programmable Logic Controller
ABB IEPAS02 POWER MODULE +5, +/-15, 24 Harmony rack HW
ABB INIIT03 Local Transfer Module
ABB GPU2000R REG544 Controller Programmable Logic Controller
ABB RTXF18/RK926-115-AH  Industrial Controller
ABB 1SAP281200R0001 TU582-S  Micro Controller
ABB CD522 1SAP260300R0001  Programmation Control
ABB 1SAP111100R0270 TB511-ETH  Plc Controller
ABB 1SAP111100R0270 TB511-ETH  Plc Controller
ABB 1SAP281200R0001 TU582-S  Micro Controller
ABB 1SFA899033R1000  Abb Analog Input Module
ABB 3BHB002953R0108  Plc Io Module
ABB 3BSE005735R1 PLC Original New

Packaging & Shipping
1.All the goods will be tested before shipment.
2. Packing in professional anti-static bag.
3. We can ship to you by DHL/TNT/UPS/EMS/Fedex... Pls contact us directly and we will ship as your requirement.
