ABB 3BHE014105R0001 AC10272001R0101 Module

Original New Dcs Module Supply ABB 3BHE014105R0001 AC10272001R0101

Description

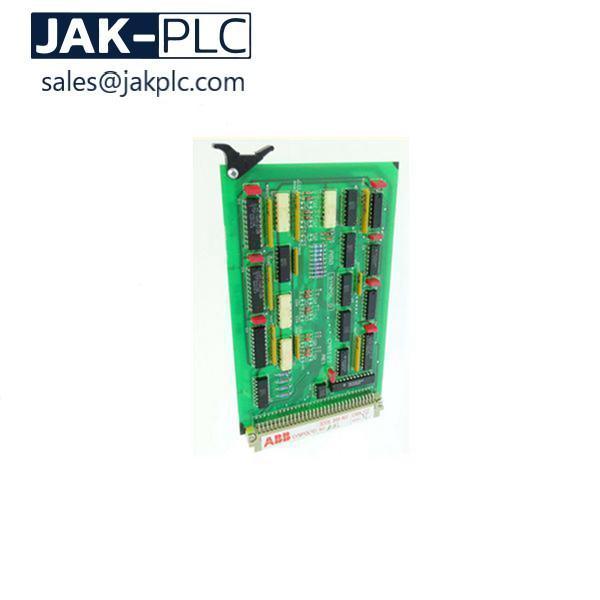

The digital input and output board, DSQC 223, has 16opto-isolated inputs and 16 opto-isolated outputs. Eachinput and output has its own yellow LED which indicateswhether or not the input/output is activated. The inputsand outputs normally receive their 24VDC supply froma customer connection, but this can also be suppliedinternally (XS3/XT3 terminals A15,B15,A16,B16,C16.If none of the I/O channels work, check first that theboards are initialized (the red F-LED should be OFF onall I/O boards). Note that if, for some reason, thesystem's parameters change, the red LED may be ON.Otherwise, the red LED may indicate that the I/O boardsare faulty.Check also that the boards have a 24VDC supply(internal or external). Common sources of errors arecable faults, sensor faults, etc.You can use the I/O menu on the teach pendant tocheck whether the current I/O board is functioningproperly. Refer to Chapter 11 - Inputs & Outputs forprocedure.

ABB Main Series

ABB DCS 800xA System/S800

ABB DCS 800xA System/S900

ABB Advant OCS/800XA

ABB H&B Freelance 2000

ABB BAILEY-INFI90/Bailey Net 90

ABB DSQC Robot Parts

ABB PLC Cards and Boards

About Us

Jak PLC for many years, is a professional engaged in large-scale system (distributed control system, programmable controller, redundant fault-tolerant control systems, robot control system, large servo control system is the central feeding system plastic molding auxiliary equipment and automation of whole plant planning) imported automation system such as spare parts, modules, sales and system integration of high-tech enterprises. The company is equipped with professional technicians to provide customers with better service.

FAQ

1.What about the warranty?
All products have a 1 year warranty.

2. What is the delivery time?
Usually 1-3 Working Days

3. Other suppliers have better prices than you?
"It is our belief to create the greatest benefit for our customers. If you have a better price, please let us know. We will do our best to meet your price and support you.

4.How about the shipment?
We can arrange shipments at competitive prices such as DHL, FedEx, UPS, TNT,  etc.

5.What are the payment terms?
Generally, T/T, Credit Card and Western Union are also accepted.
