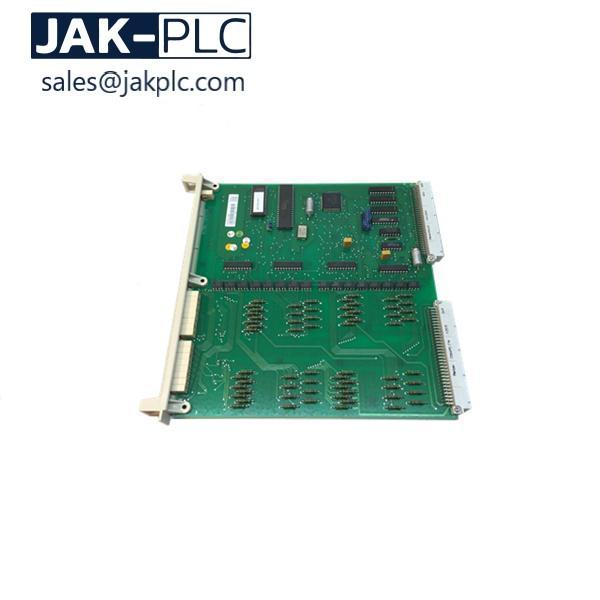

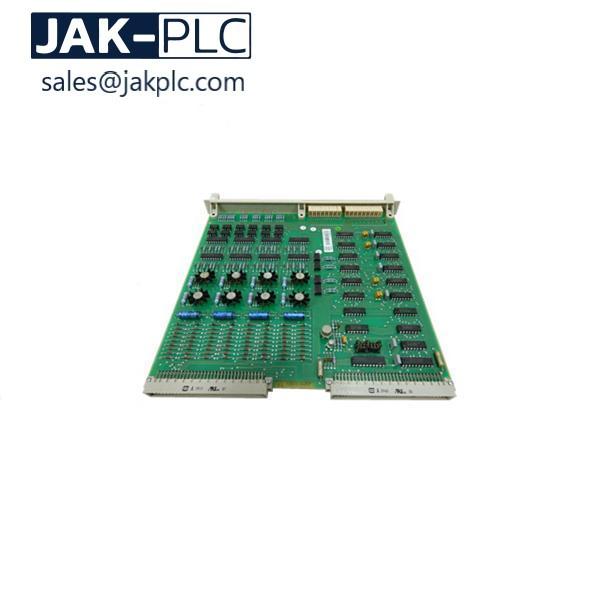

ABB BAILEY CONTROLS IIMCL01 BOARD

Bailey IIMCL01 Multibus Communication Link Termination Card

brand:
ABB
item no:
IIMCL01
payment:
T/T, Western Union, Credit Card
product origin:
Sweden
good stock:
6.0
shipping port:
Dammam, Saudi Arabia
lead time:
1-3 Working Days
condition:
Brand New And Original
warranty:
1 Year
certificate:
COO
description:
Multibus Communication Link Termination Card
product type:
Bailey INFI 90

Product Details
FAQs

ABB Bailey Controls IIMCL01 MultiBus Communications Link Termination Card

Description

The IIMCL01 Analog Input Module is a Harmony rack I/Omodule that is part of the Symphony Enterprise Managementand Control System. It has 16 analog input channels thatinterface isolated thermocouple, millivolt, RTD, and high levelanalog signals to a controller with an analog-to-digital conversion resolution of 24 bits. Each channel has its own analog-to-digital converter and can be independently configured tohandle the desired input type. These analog inputs are used bya controller to monitor and control a process.The IIMCL01module can be used as a direct replacement fortheIIMCL01or IIMCL01modules with only minor modifications. Changes to specification S11 in function code 216 arerequired to handle the differences in resolution choices. Verification of power supply sizing calculations and system currentrequirements could be necessary because of the change inpower consumptionThis instruction explains the IIMCL01module specificationsand operation. It details the procedures necessary to completesetup, installation, maintenance, troubleshooting, andreplacement of the module
