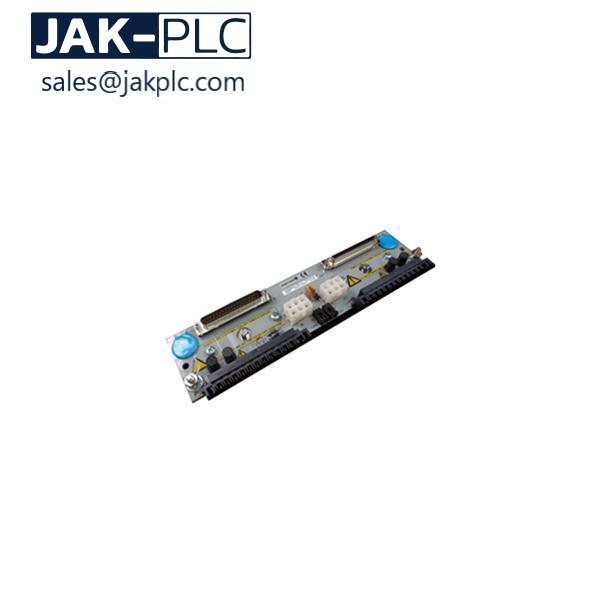

ABB Bailey INICT03A Module In Stock

ABB Bailey INICT03A One Year Warranty

Description

The controller is a panel-mounted, slide-out assembly that conformsto DIN standards. The assembly contains four printed circuit boards(main board, operator interface board, power supply board and termination board) and a faceplate assembly . The operator interface board is attached to the faceplate assembly and is connected tothe main board via a 26-pin ribbon cable connector. Both the powersupply board and the main board plug into card edge connectors onthe termination board. The termination board is assembled to the rearof the housing and provides plug-in terminal blocks for easy accesswhen making wiring connections in the field. The terminal blocks arekeyed and marked to prevent possible customer connection errors.Type SLC22_ controllers have an optional input board for low level orfrequency/pulse inputs. It connects to P6 on the main board. TypeSLC_21 controllers have a serial interface board that allows termination board access to the serial interface at the rear of the controller.The serial interface board connects to P7 and P8 on the main board.The housing is welded sheet steel and contains card guides that areriveted to the housing for installing the circuit boards. Multiple knockouts at the rear of the housing provide two ½-inch and one æ-inchconduit entrance facilities for electrical interconnections. The housingalso contains multiple holes in the top and bottom primarily for heatdissipatio

More parts

ABB GPU2000R Generator Protection Unit
ABB GPU200R  4 Channel Analog Input Module
ABB RTXF18/RK926-007-AB  Plc Controller Programmable Logic Controller
ABB IEPAS02 POWER MODULE +5, +/-15, 24 Harmony rack HW
ABB INIIT03 Local Transfer Module
ABB GPU2000R REG544 Controller Programmable Logic Controller
ABB RTXF18/RK926-115-AH  Industrial Controller
ABB 1SAP281200R0001 TU582-S  Micro Controller
ABB CD522 1SAP260300R0001  Programmation Control
ABB 1SAP111100R0270 TB511-ETH  Plc Controller
ABB 1SAP111100R0270 TB511-ETH  Plc Controller
ABB 1SAP281200R0001 TU582-S  Micro Controller
ABB 1SFA899033R1000  Abb Analog Input Module
ABB 3BHB002953R0108  Plc Io Module
ABB 3BSE005735R1 PLC Original New

Packaging & Shipping
1.All the goods will be tested before shipment.
2. Packing in professional anti-static bag.
3. We can ship to you by DHL/TNT/UPS/EMS/Fedex... Pls contact us directly and we will ship as your requirement.
