ABB DCS 3BHE006412R0101 UFC762AE101 Module

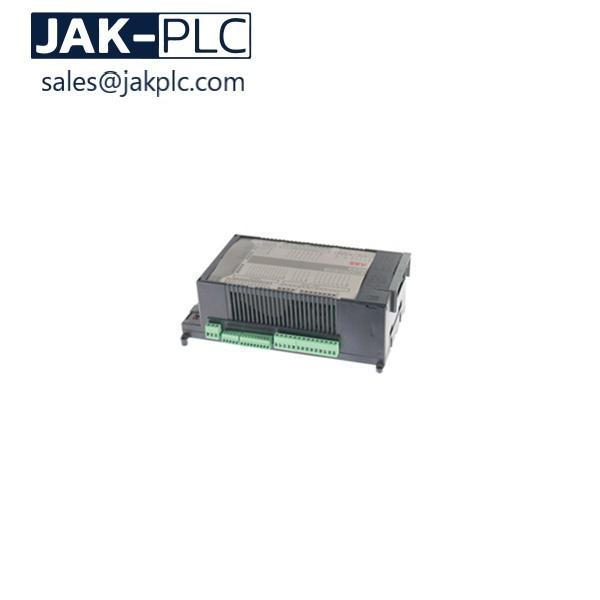

Original and Brand New BAILEY Module 3BHE006412R0101 UFC762AE101

Description

The contribution to the short-circuit on the DC side of the inverter may comefrom the grid and from the discharge of the capacitors inside the inverter.The grid current is due to the recirculating diodes of the bridge inverter whichin this case act as a bridge rectifier. Such current is limited by the impedancesof the transformer and of the inductors belonging to the output circuit and bythe protection fuses of the inverter on the AC side chosen so that they can limitthe thermal effects of possible internal faults on the semiconductors.As a consequence the I2t passing through will be normally reduced. Indicativelya final current value (internal capacitors completely discharged) of 10In can bean upper limit value. This current is present in case of inverter with galvanicinsulation at 50Hz, while it is null in case of inverter without transformer.In fact these inverters usually have an input DC/DC converter so that the operation on a wide voltage range of the PV generator is guaranteed; this converter,due to its constructive typology, includes at least one blocking diodes whichprevents the contribution of the grid current to the short-circuit.The discharge current of the capacitors is limited by the cables between inverterand fault and exhausts itself with exponential trend: the lowest the impedance ofthe cable stretch, the highest the initial current, but the lowest the time constantof the discharge. The energy which flows is limited to that one initially stored inthe capacitors. Moreover, if a blocking diode or other similar device is in serieswith one of the two poles, this contribution to the short-circuit is null.In each case, the short-circuit on the DC side causes a drop of the direct voltage,the inverter certainly shuts down and probably is disconnected from the grid.Normally the shut down times of the inverter are of the order of some milliseconds, while the disconnection times may be of the order of some dozens ofmilliseconds. In the interval between the shut down and the disconnection, thegrid might cause the above mentioned effect, while the internal capacitors, ifinvolved, participate up to their complete discharge.

Packaging & Shipping

1.All the goods will be tested before shipment.

2. Packing in a professional anti-static bag.

3. We can ship to you by DHL/TNT/UPS/FedEx... Pls, contact us directly.
