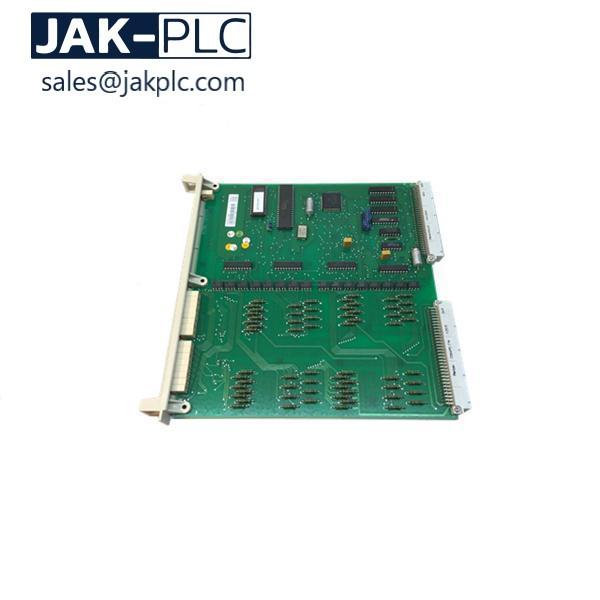

ABB IMASO11 Bailey Symphony Harmony ANALOG OUTPUT Module

ABB IMASO11 Harmony rack I/O Analog Output Module

Harmony rack I/O incorporates a variety of input and output devices to interface process signalsto the Symphony Enterprise Management and Control System. Analog input modules interfacefield inputs such as pressure and flow transmitter signals, thermocouple (TC) inputs, and resistivetemperature device (RTD) inputs. Analog output modules provide output signals to adjust finalcontrol elements such as control valves, pumps, positioners, actuators, etc.An analog I/O module consists of a single printed circuit board that occupies one slot in a modulemounting unit (MMU). In general, jumpers and switches on the printed circuit board and jumpersand dipshunts on the termination unit configure the module and its I/O channels. A cable connects the I/O module to its termination unit. The physical connection points for field wiring are onthe termination unit.

The IMASO11 Analog Output module processes up to 14 analog control outputs for a Harmonycontroller. The controller utilizes function codes 149 (analog output group) to configure and accessthe module output channels. Each channel can be individually programmed for the following output types:

4 to 20 milliampere.

1 to 5 VDC.

Each output reads back the signal to the field to insure accurate operation and eliminate the needto calibrate outputs.

Specifications
