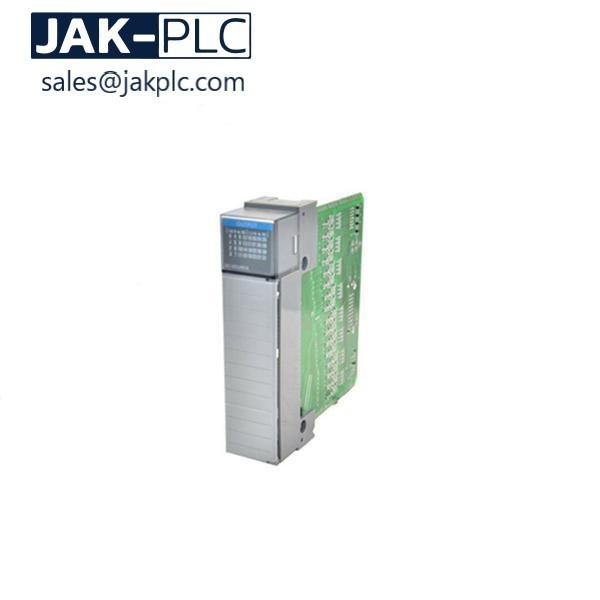

The Allen-Bradley 1746-OB16 is a SLC 500 Digital DC Output Module. This Digital DC Output Module has a Voltage Range of 10-50 Volts DC Source and 16 Outputs. It has a Backplane Current (5 Volts) of 280 milliamps.
brand:
Allen Bradleyitem no:
Allen Bradley 1746-OB16payment:
TT Or Western Unionproduct origin:
USAshipping port:
Dammamlead time:
1-3 Working Dayscondition:
Original Newwarranty:
12 Monthsdescription:
Allen Bradley 1746-OB16 Digital Output Modulesproduct type:
1746 Digital I/O Modulessystem:
Allen Bradley SLC 500New Factory Sealed AB 1746-OB16 /D SLC 500 Output Module 1746OB16
About 1746-OB16 :
The 1746-OB16 SLC 500 Digital DC Output Module by Allen-Bradley is a DC module with sixteen 24V DC outputs and it is lodged in any free slot in the 1746 I/O Chassis.
The 1746-OB16has 16 output points and a backplane electrical rating of 0.280A at 5 Volts DC and one of 0A at 24V DC. The 1746-OB16 has a load-dependent maximum signal delay time of 1ms for OFF and 0.1ms for ON and a maximum current loss of 1mA in its OFF state. In its ON state, it has a voltage loss of 1.2 Volts at 0.50A and the minimum load each point can carry is 1mA.
Allen Bradley 1746-OB16 Technical Specifications:
| Brand | Allen-Bradley |
| Manufacturer | Rockwell Automation |
| Part Number/Catalog No. | 1746-OB16 |
| Voltage Range | 10-50 Volts DC Source |
| Outputs | 16 |
| Current/Output | 0.5 or 0.25 amps |
| Current/Module | 8 or 4 amps |
| Backplane Current (5 Volts) | 280 milliamps |
| Current/Module (30 Celsius) | 9 amps |
| Applications | High Current |
| Step Response | 60 milliseconds in, 2.5 milliseconds out |
| Heat Dissipation | 7.6 Watts |
Common spellings:
1746 ob16
1746-ob16 allen bradley
ob16
ab 1746-ob16e
allen-bradley 1746-ob16
