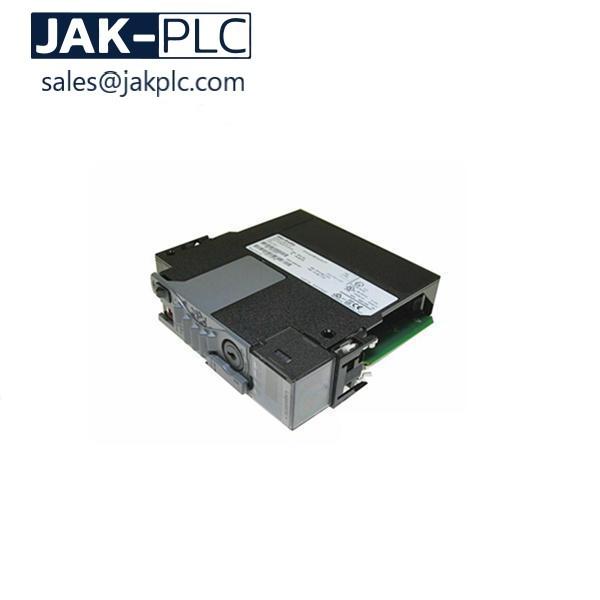

Allen Bradley 1756-DHRIO Module

Allen Bradley Communications Interface 1756-DHRIO DH+ RIO

Description

The Allen-Bradley 1756-DHRIO is a ControlLogix Data Highway Plus/Remote I/O communication interface module. This module has Two (2) channels, supporting communication rates of 57.6 kilobytes per second, 115.2 kilobytes per second, and 230.4 kilobytes per second, depending on the cable length. It can transfer a message through a maximum of three chassis and four communication networks. With this module, information exchange can be done among devices such as PLCs, SLCs, and ControlLogix controllers, even on different networks.

It supports the following types of communication: Remote I/O, Control and Information Protocol (CIP) Messaging, and Data Highway Plus (DH+) Messaging between devices. It can have up to 32 Logix connections and the remote I/O link can connect to a remote I/O device, as well as other intelligent devices. When connected to a remote I/O network, it can act as an adapter or scanner and transfer analog, digital, block, and specialty data even with the absence of message instructions. Prior to installing the 1756-DHRIO module, you need to program the network type switches for each channel and install and connect a ControlLogix power supply and chassis. You can install as many modules as you can in the same chassis but this will depend on your available power supply. Note that modules can also be installed or removed even when the chassis power is applied but you need to observe safety precautions, particularly that the area is nonhazardous and power is removed, to prevent an electrical arc that can cause excessive wear to the contacts of both the module and the connector. Make sure to discharge potential static because the module is sensitive to electrostatic discharge
