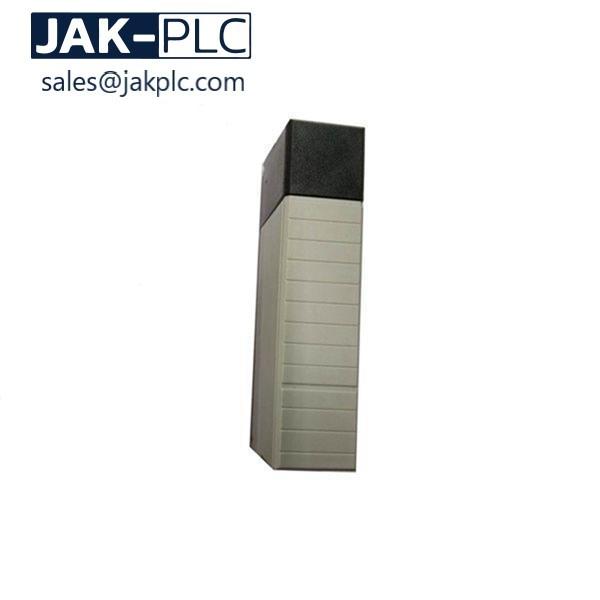

Allen Bradley 1756-DNB ControlLogix Scanner Module

1756-DNB Allen Bradley ControlLogix Scanner Module with 125, 250, or 500 kilobites per second DeviceNet Communication Rates

brand:
Allen Bradley
item no:
Allen Bradley 1756-DNB
payment:
TT Or Western Union
product origin:
USA
shipping port:
Dammam
lead time:
1-3 Working Days
condition:
Original New
warranty:
12 Months
certificate:
Co,Coo
description:
Allen Bradley DeviceNet Comms Module
product type:
Scanner Module
system:
Allen Bradley ControlLogix

Product Details
FAQs

SEALED Allen Bradley 1756-DNB /E ControlLogix DeviceNet Bridge Scanner NEW

About 1756-DNB:

The Allen-Bradley 1756-DNB is a DeviceNet Scanner module that connects to a ControlLogix system. It serves as a bridge that collects data from the DeviceNet modules and then delivers a copy of the information to the controller and vice versa. Using the 1756-DNB scanner module, the user can expect DeviceNet communication rates of 125 kilobytes per second by default, 250 kilobytes per second, and up to 500 kilobytes per second. It has DeviceNet node addresses 00 to 63, with node address 63 set by default and a maximum of 64 nodes. It is only compatible with the Logix5550 controller. This particular module acts as a gateway between DeviceNet devices and the network in order to read input and write output from a device, download the configuration data, and monitor the operational status of a device.

Allen Bradley 1756-DNB Technical Specifications:

Brand	Allen-Bradley
Manufacturer	Rockwell Automation
Part Number/Catalog No.	1756-DNB
DeviceNet Communication Rates	125, 250, or 500 kilobites per second
Location	ControlLogix Chassis (any slot)
Backplane Current (5Volts)	580 milliamps
Backplane Current (24Volts)	3 milliamps
Power Dissipation (Max)	5.8 Watts
Thermal Dissipation	19.8 BTU per hour
DeviceNet Current	11-25 Volts DC
Insulation Voltage	30 Volts Continuous
Operating Temperature	0-60 Celsius (32-140 Fahrenheit)

Allen Bradley 1756 module

FAQ FOR 1756-DNB

1. Question: Can this module be purchased with a warranty?
Answer: Yes, the 1756-DNB comes with a free one-year warranty from Jak PLC
2. Question: What is this module’s power dissipation?
Answer: The 1756-DNB dissipates 5.8 Watts of power.
