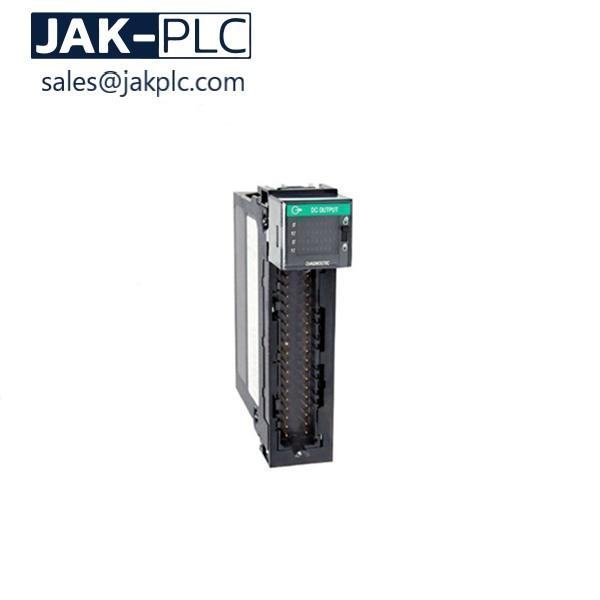

New in Box AB 1756-OB16I ControlLogix 16 Point Output Serise Module 1756OB16I 24V DC Isolated
brand:
Allen Bradleyitem no:
Allen Bradley 1756-OB16Ipayment:
TT Or Western Unionproduct origin:
USAshipping port:
Dammamlead time:
1-3 Working Dayscondition:
Original Newwarranty:
12 Monthsdescription:
ControlLogix Output Moduleproduct type:
1756 ControlLogix I/Osystem:

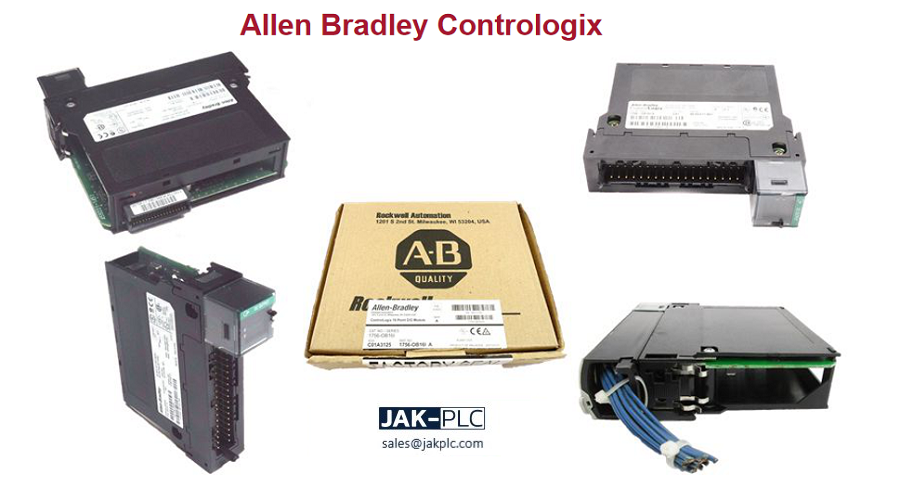

Allen Bradley ControlLogixAB Allen Bradley 1756-OB16I ControlLogix Isolated Output Module
About 1756-OB16I:
The Allen-Bradley 1756-OB16I is a ControlLogix DC digital output module that has Sixteen (16) individually isolated points.
1756-OB16Idoes not have internal however, external IFM can be used to protect outputs. The recommended fuse type for this module is the 5x20mm 4 A quick-acting fuse supplied by with part number SOC p/n MQ2-4A. For the 1756-OB16I module, compatible Remote Terminal Blocks (RTB) are 1756-TBCH 1756-TBS6H, which both have 36 pins. RTB are required to provide signal termination point.
The output channels of this module feature a configurable safe state position ne the controller’s mode is changed to Program and Controller fault. This is configurable using RSLogix 5000 or Studio 500 Logix Designer software.
Technical Specifications For Allen Bradley 1756-OB16I:
| Brand | Allen-Bradley |
| Manufacturer | Rockwell Automation |
| Part Number/Catalog No. | 1756-OB16I |
| Outputs | 16-Point Individually Isolated |
| Module Type | Isoloated DC Output Module |
| Voltage | 12-24 Volts DC Sink-Source |
| Operating Voltage Range | 10-30 Volts DC |
| Output Delay Time ( OFF to ON) | 1 ms max |
| Output Delay Time ( ON to OFF) | 2 ms max |
| Current per point | 2 A @ 30 °C (86 °F) 1 A @ 60 °C (140 °F) (linear derating) |
