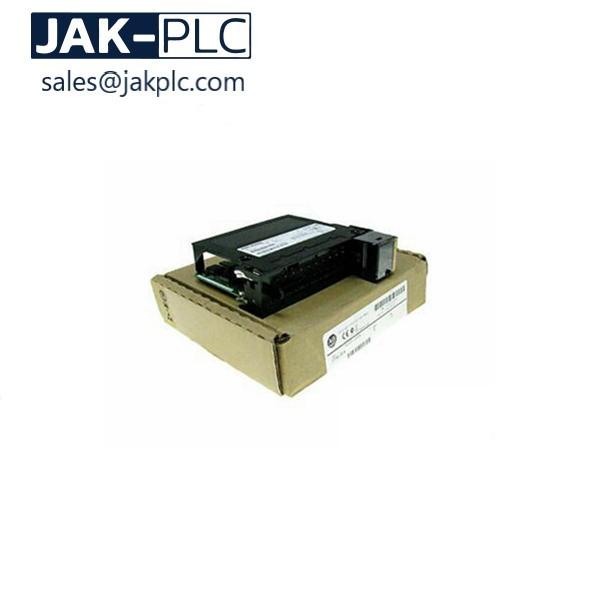

ALLEN BRADLEY CONTROLLOGIX 4 POINT ANALOG VOLTAGE/CURRENT OUTPUT MODULE 1756-OF4/A
brand:
Allen Bradleyitem no:
Allen Bradley 1756-OF4payment:
TT Or Western Unionproduct origin:
USAshipping port:
Dammamlead time:
1-3 Working Dayscondition:
Original Newwarranty:
12 Monthsdescription:
ControlLogix Output Analog Moduleproduct type:
1756 ControlLogix I/Osystem:
Allen Bradley ControlLogixRockwell Allen-Bradley Analog Output Module 1756-OF4/A Module
About 1756-OF4:
The Allen-Bradley 1756-OF4 module is a ControlLogix non-isolated output module.
1756-OF4has 4 voltage or current outputs available with a current resolution of 15 bits across 21 mA, 650 nA/bit for a voltage resolution of 16 bits across 10.5V, 320 µV/bit. It requires a 20 pin RTB, or Removable Terminal Block housing for connection to field devices. The compatible RTBs are the 1756-TBSH and the 1756-TBNH. It is important to ensure that the chassis and power supply have already been installed and grounded prior to installing the module to it with the RTB.
Technical Specifications For Allen Bradley 1756-OF4:
| Brand | Allen-Bradley |
| Manufacturer | Rockwell Automation |
| Part Number/Catalog No. | 1756-OF4 |
| Output Voltage Range | ±10V |
| Output Current Range | 4…20 mA |
| Output Voltage Resolution | 15 bits across 10.5V, 320 µV/bit O |
| Output Current Resolution | 15 bits across 21 mA, 650 nA/bit |
| Backplane Current (5Volts) | 150 milliamps |
| Backplane Current (24 Volts) | 120 milliamps |
| Power Dissipation (Max) | 4.9 Watts at 60 Celsius |
1756 ControlLogix I/O Specifications:
AC Digital Catalog Numbers :1756-IA8D, 1756-IA16, 1756-IA16K, 1756-IA16I, 1756-IA16IK, 1756-IA32, 1756-IA32K,1756-IM16I, 1756-IM16IK, 1756-IN16, 1756-OA8, 1756-OA8D, 1756-OA8E, 1756-OA16,1756-OA16K, 1756-OA16I, 1756-OA16IK, 1756-ON8DC
Digital Catalog Numbers: 1756-IB16, 1756-IB16K, 1756-IB16D, 1756-IB16DK, 1756-IB16I, 1756-IB16IK, 1756-IB16IF,1756-IB16IFK, 1756-IB16ISOE, 1756-IB16ISOEK, 1756-IB32, 1756-IB32K, 1756-IC16, 1756-IG16,1756-IH16I, 1756-IH16ISOE, 1756-IV16, 1756-IV16K, 1756-IV32, 1756-IV32K,1756-OB8, 1756-OB8EI, 1756-OB8I, 1756-OB16D, 1756-OB16DK, 1756-OB16E, 1756-OB16EK,1756-OB16I, 1756-OB16IEF, 1756-OB16IEFK, 1756-OB16IEFS, 1756-OB16IS, 1756-OB32,1756-OB32K, 1756-OC8, 1756-OG16, 1756-OH8I, 1756-OV16E, 1756-OV32E
