Allen Bradley ControlLogix DC Power Supply Module 1756-PB75 with 24 Volts DC Input Voltage
brand:
Allen Bradleyitem no:
Allen Bradley 1756-PB75payment:
TT Or Western Unionproduct origin:
USAshipping port:
Dammamlead time:
1-3 Working Dayscondition:
Original Newwarranty:
12 Monthsdescription:
Allen Bradley DC Power Supply Module 1756-PB75product type:
ControlLogix Power Supplysystem:
Allen Bradley ControlLogixNEW IN BOX Allen Bradley1756-PB75 1756-PB75R /A DC Power Supply for ControlLogix
About 1756-PB75 :

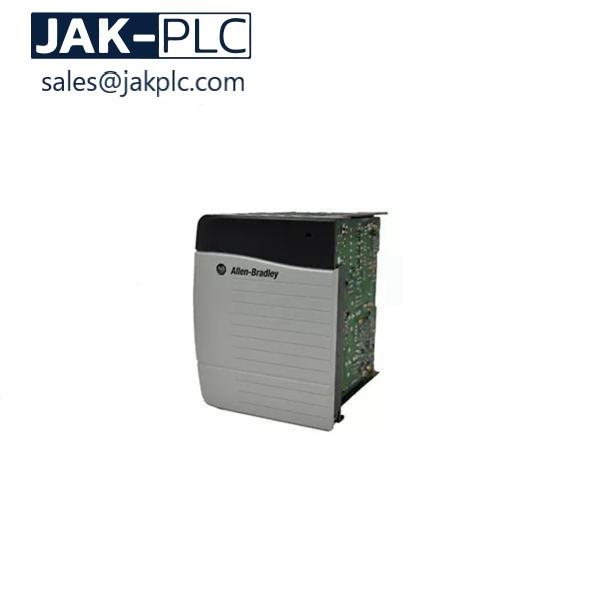

1756-PB75 Allen Bradley ControlLogix DC Power Supply Module with 24 Volts DC Input Voltage
The 1756-PB75 ControlLogix Standard DC Power Supply by Allen-Bradley is a DC power source module positioned on the left side of the 1756-A4, 1756-A7, 1756-A10, 1756-A13, and 1756-A17 chassis of 1756 ControlLogix devices that also provides power to the chassis backplane. The 1756-PB75 has an input voltage range between 18 and 32V DC with 24V DC nominal and a power rating of 95W input power and 75W maximum output power at 0-60 °C. The module has a maximum surge current of 30A and a signal hold up time of 35ms at 18V DC, 40ms at 24V DC, and 40ms at 32V DC. It has a current capacity of 1.5A at 1.2V, 4A at 3.3V, 13A at 5.1V, and 2.8A at 24V DC.
Allen Bradley 1756-PB75 Technical Specifications:
| Brand | Allen-Bradley |
| Manufacturer | Rockwell Automation |
| Part Number/Catalog No. | 1756-PB75 |
| Input Voltage | 24 Volts DC |
| Voltage Range | 18-32 Volts DC |
| Input Power | 95 Watts |
| Power Output | 75 Watts at 60 Celsius |
| Chassis | Series B |
| Location | Chassis - Left |
| Weight | 2.5 pounds (1.1 kilograms) |
| Dimensions | 5.5 x 4.4 x 5.7 inches |
Common spellings:
1756-PB75
1756-PB75/B
ab 1756-pb75
A-B 1756-PB75
Allen Bradley 1756-PB75
