ALLEN BRADLEY 1769-L20 PROCESSOR LOGIX 5320

1769-l20 CompactLogix Logix 5320 CPU 1769 L20 Processor Unit NEW

brand:
Allen Bradley
item no:
1769-L20
payment:
T/T, Western Union, Credit Card
product origin:
USA
good stock:
10.0
shipping port:
Dammam, Saudi Arabia
lead time:
1-3 Working Days
condition:
Brand New And Original
warranty:
12 Months
certificate:
COO
description:
Logix 5320 CPU Processor Unit
product type:
CompactLogix

Product Details
FAQs

ALLEN BRADLEY 1769-L20 PROCESSOR LOGIX 5320 NEW IN BOX

Description

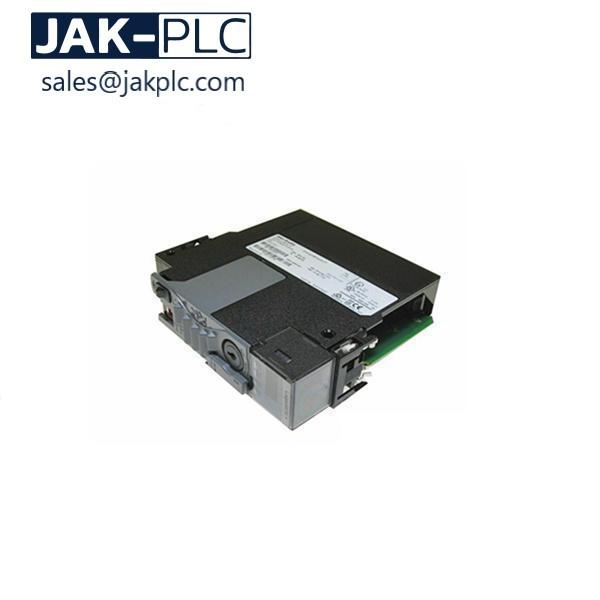

The Allen-Bradley 1769-L20 is a CompactLogix Controller. It can support up to 8 modules in a maximum of 2 I/O banks with 1 expansion cable allowed and it has 1 RS-232 port available. LED indicators let the users monitor the controller status, the channel 0 RS-232 port status, and the channel 1 RS-232 port status. The channel 0 serial port has been set up for DH-485 communications.

This controller also comes with a 64 KB user memory which is allotted for both user available memory and memory reserved for overhead. The 1747-BA battery powers this controller and it is replaceable. The entire 1769-L20 controller measures 50 x 87 x 118 millimeters and has a shipping weight of 0.715 pounds. Operators can use a 1747-CP3 or 1756-CP3 programming cable with it and it can be mounted on a panel mount or DIN rail. Configuring this controller is done via the RSLogix5000 programming software.

The 1769-L20 comes with a backplane current of 600 mA at 5 Volts DC and 0 mA at 24 Volts DC. Intended for clean, dry environments, it has an operating temperature of 0 to 60 degrees Celsius and storage temperature of -40 to 85 degrees Celsius. Its ambient non-condensing relative humidity is 5 to 95% and the operating vibration is 5 g at 10 to 500 Hertz, 0.030. The 1769-L20’s operating shock is 30 g at 11 milliseconds when panel-mounted and 20 g at 11 milliseconds when DIN rail-mounted and its non-operating shocks are 40 g and 30 g, respectively.

Allen Bradley Main Products:

1. SLC500:1747/1746 series
2.MicroLogix: 1761/1763/1762/1766/1764 series
3.CompactLogix: 1769/1768 series
4. The ControlLogix: 1756/1794/1760/1788 series
5. PLC-5:1771/1785 series
6.2711,2711P PanelView man-machine interface, touch screen, operation panel
7.22A,22B, 20 small frequency converter,150 soft starter
8. ProSoft: MVI69 / PS69 / MVI56 / MVI94 / MVI71 / MVI46/3150 9. ICS TRIPLEX: T8431 / T8461 / T3401 / T8310
