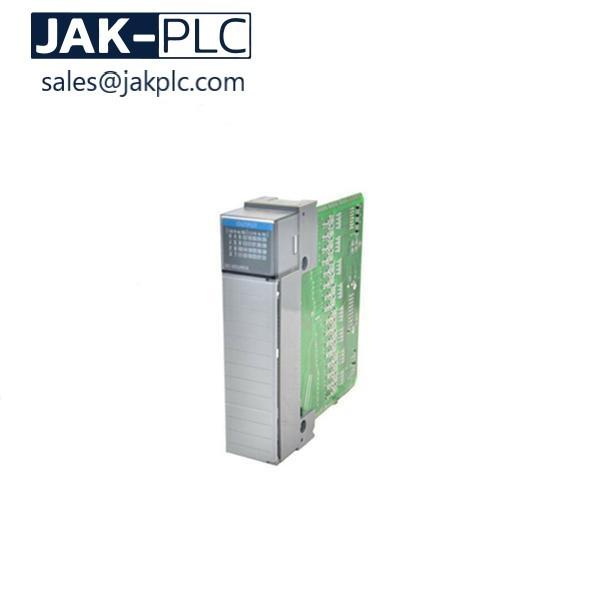

Allen Bradley 1769-OW8I Discrete Output Module

Fast Delivery Allen Bradley 1769-OW8I Module

Introduction

The module’s backplane current draws are 125 mA at 5.1 Volts and 100 mA at 24 Volts. The 1769-OW8I module has a maximum current of 2.5 Amps per point and 16 Amps per module and a maximum power dissipation of 2.83 Watts. It has a minimum on-state current of 10 mA at 5 Volts DC and a maximum off-state leakage of 0 mA. The operating voltage of this module is 5 to 265 Volts AC/5 to 125 Volts DC. This module also has an operating vibration of 5 G at 10 to 500 Hertz and a relay operating vibration of 2 G. The 1769-OW8I’s operating temperature is from 0 to 60 degrees Celsius and the non-operating temperature is -40 to 85 degrees Celsius. Its relative humidity ranges from 5 to 95%, non-condensing.
The Allen-Bradley 1769-OW8I module has LED status indicators available and it has an open-type of enclosure. The compatible cables are 22 to 16 AWG stranded and 22 to 14 AWG solid and the compatible power supplies are the 1769-PA2, 1769-PA4, 1769-PB2, and the 1769-PB4. Note that the users can only mount this module by using a DIN rail or a panel mounting base. When using a DIN rail mount, this module has a relay operating shock of 5 G, an operating shock of 20 G, and a non-operating shock of 30 G. A panel-mounted 1769-OW8I module has a relay operating shock of 7.5 G, an operating shock of 30 G, and a non-operating shock of 40 G. Its operating vibration is 5 G at 10 to 500 Hertz and its relay operating vibration is 2 G. Allen-Bradley 1769 Compact I/O modules can be used with CompactLogix controllers, for expansion I/O in a MicroLogix 1500 controller assembly, with a 1769-ADN DeviceNet adapter, as well as with a 1769-AENTR Ethernet adapter.

Allen Bradley Main Products:

1. SLC500:1747/1746 series
2.MicroLogix: 1761/1763/1762/1766/1764 series
3.CompactLogix: 1769/1768 series
4. The ControlLogix: 1756/1794/1760/1788 series
5. PLC-5:1771/1785 series
6.2711,2711P PanelView man-machine interface, touch screen, operation panel
7.22A,22B, 20 small frequency converter,150 soft starter
8. ProSoft: MVI69 / PS69 / MVI56 / MVI94 / MVI71 / MVI46/3150 9. ICS TRIPLEX: T8431 / T8461 / T3401 / T8310
