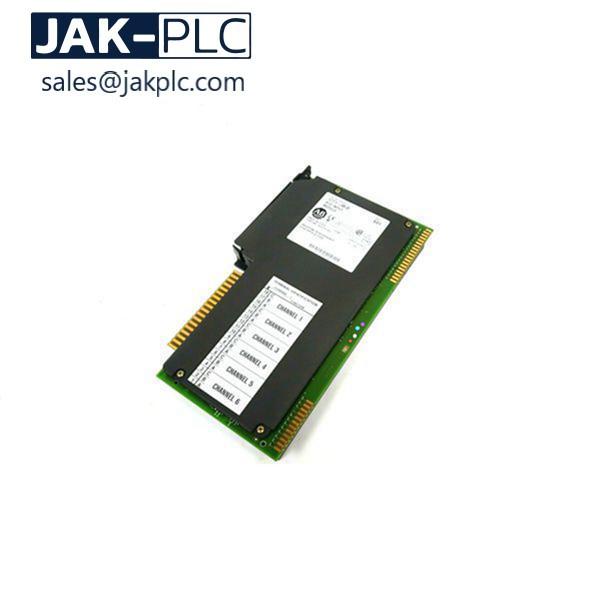

Allen Bradley 1771-IR PLC-5 Input Module

Allen Bradley 1771-IR PLC-5 Input Module

Allen Bradley PLC 1771-IR 5 RTD Input, Natural Binary, BDC Actual Temperature, or Ohm Readings Data Format, 800 Miliamperes Backplane Current, No External Power Required

  • brand:

    Allen Bradley
  • item no:

    Allen Bradley 1771-IR
  • payment:

    TT Or Western Union
  • product origin:

    USA
  • shipping port:

    Dammam
  • lead time:

    1-3 Working Days
  • condition:

    Original New
  • warranty:

    12 Months
  • description:

    PLC-5 RTD Input Module
  • product type:

    RTD Input Module
  • system:

    Allen Bradley PLC-5

USED ALLEN BRADLEY 1771-IR D RTD INPUT MODULE 1771IR


About 1771-IR:

The Allen-Bradley 1771-IR is a PLC-5 RTD input that features a natural binary BDC-supported actual temperature and Ohm readings data format. This device does not require any kind of external power. It consists of 6 three-wire RTD Inputs.
The channel update resolution for this device brings in a combination of 50ms/8 channel and 16 bits +sign (1.0 Celsius /1.0Fahrenheit/bit). The voltage range for the 1771-IR input module is 100 Ohms platinum and 10 Ohms other. It has a backplane current range of 800mA. It has a 1771-WF smart wiring arm.


Allen Bradley1771-IR Technical Specifications:

BrandAllen-Bradley
ManufacturerRockwell Automation
Part Number/Catalog No.1771-IR
Number of Inputs & Outputs6 Three-Wire RTD Inputs
Data FormatNatural Binary, BDC Actual Temperature, or Ohm Readings
Channel Update/Resolution50 ms/8 channel; 16 bits + sign (1.0 Celsius/1.0 Fahrenheit/bit)
Voltage Range100 Ohms platinum, 10 Ohms other
Current RangeN/A
Backplane Current800 Miliamperes
External Power RequiredNo
Typical DC Signal Delay (On)10 ms
Typical AC Signal Delay (Off)45 (+/- 15) ms

allen bradley input module
