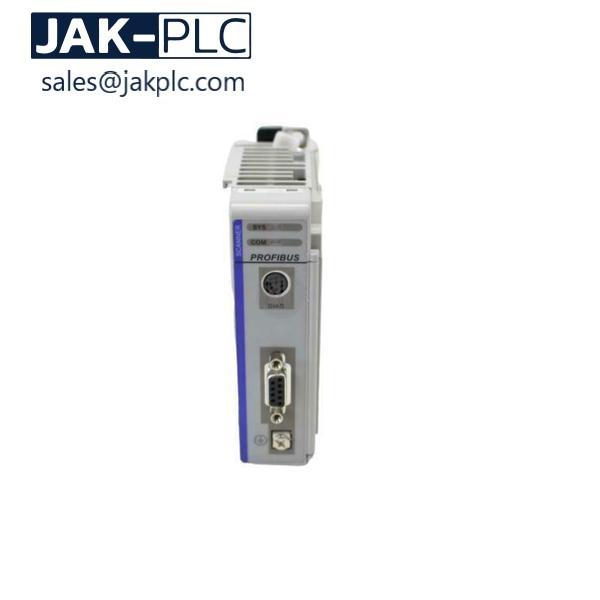

Allen Bradley PS69-DPM Module

 ProSoft PS69-DPM New In Box Fast Ship

Introduction

PROSOFT is a software developed by Datexel srl, running under the operative system Windows® and designed to program and visualize themeasure of the converters and transmitters programmable by PC. To operate with PROSOFT it is necessary to use the programming interface(PRODAT) between the P.C. and the device; refer to the following table to use the right interface and device.

The module uses a rechargeable Lithium Vanadium Pentoxide battery to back up the real-time clock and CMOSsettings. The battery itself should last for the life of the module. However, if left in an unpowered state for 14 to21 days, the battery may become fully discharged and require recharging by being placed in a powered-upControlLogix chassis. The time required to fully recharge the battery may be as long as 24 hours.Once it is fully charged, the battery provides backup power for the CMOS setup and the real-time clock forapproximately 21 days. Before you remove a module from its power source, ensure that the battery within themodule is fully charged (the BATT LED on the front of the module goes OFF when the battery is fully charged). Ifthe battery is allowed to become fully discharged, the module will revert to the default BIOS and clock settings.

Prosoft Family Modules

Prosoft MVI69-PDPS Prosoft MVI69-PDPS Profibus DP Slave Communication Module
Prosoft MVI69-GSC Generic ASCII Serial Communication Module
Prosoft MVI69E-MBTCP MVI69E-MBTCP Modbus TCP/IP module for the CompactLogix
Prosoft MVI69L-MBS MVI69L-MBS, Modbus Serial module for the CompactLogix
Prosoft MVI69-MCM MVI69-MCM Modbus Master/Slave Network Interface Module
Prosoft MVI69-ADMNET 'C' Programmable Application Development Module
Prosoft MVI69-ADM 'C' Programmable Application Development Module for CompactLogix
Prosoft MVI69-DFNT MVI69 EtherNet/IP (DF1 for Ethernet) Client/Server Communication Module
Prosoft MVI69-MNET Modbus TCP/IP Communication Module
Prosoft MVI69-PDPMV1 PROFIBUS DP-V1 Master Network Interface Module for CompactLogix
Prosoft MVI69E-MBS Modbus Serial Lite Communication Module
