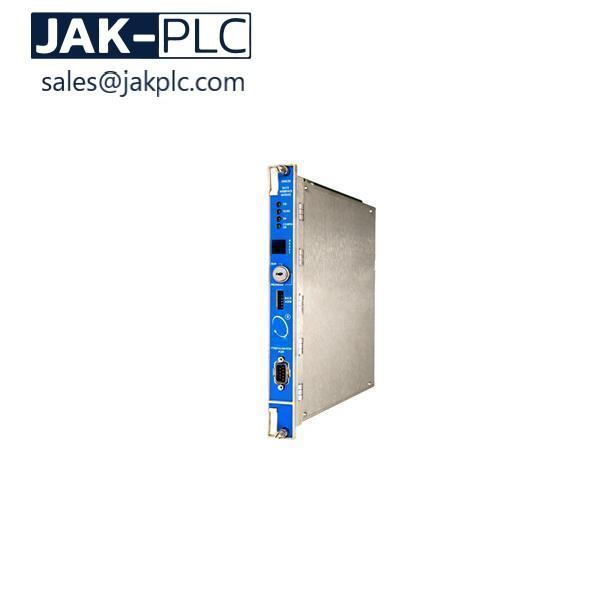

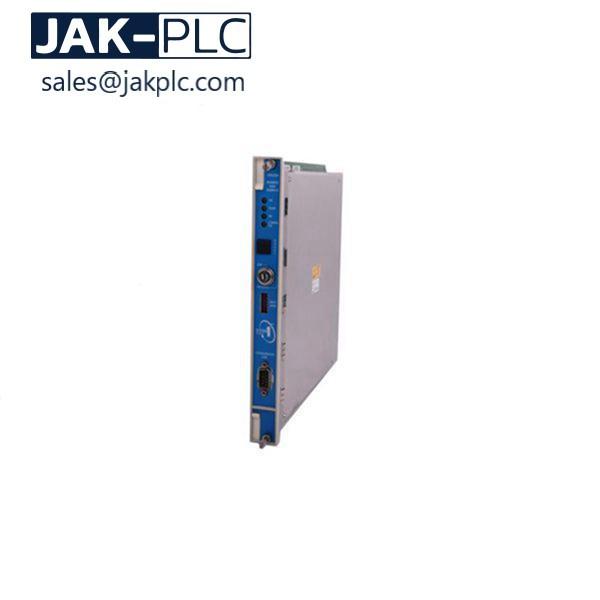

Bently Nevada 3500/20 CPU Rack Interface Module

Bently Nevada 3500/20 Rack Interface Module in Stock

brand:
Bently Nevada
item no:
Bently Nevada 3500/20
payment:
TT Or Western Union
product origin:
USA
shipping port:
Dammam
lead time:
1-3 Working Days
condition:
Original New
warranty:
12 Months
description:
3500/20 Rack Interface Module
product type:
CPU Module
system:
Bently Nevada 3500

Product Details
FAQs

Bently Nevada 3500/20 CPU Interface Module 1 year warranty

Description :

Bently Nevada 3500/20 Rack Interface Module (RIM) is the primary interface into the 3500 rack. It supports a Bently Nevada proprietary protocol used to configure the rack and retrieve machinery information. The RIM must be located in slot 1 of the rack (next to the power supplies). The RIM provides the connections needed to support current Bently Nevada Communications Processors (Transient Data Interface External (TDIX) and Dynamic Data Interface External (DDIX)). Although the RIM does provide certain functions common to the entire rack, the RIM is not part of the critical monitoring path. The RIM's operation (or non- operation) has no effect on the proper, normal operation of the overall monitoring system.For Triple Modular Redundant (TMR) applications, the 3500 System requires aTMR version of the RIM. In addition to all the standard RIM functions, the TMR RIMalso performs "monitor channel comparison." The 3500 TMR configurationimplements monitor voting using the setup specified in the monitor options.Using this method, the TMR RIM continually compares the outputs from three (3)redundant monitors

Specifications

Part No.	3500/20
Inputs Power Consumption	4.75 watts, typical
I/O modules Standards	RS232/RS422 serial Internal modem communications
I/O Modules Trip multiply	Used to place 3500 rack in Trip Multiply.
Rack reset	Used to clear latched alarms and Timed OK Channel Defeat.
Outputs Front Panel OK LED	Indicates when the RIM 3500/20 is operating properly.
Outputs TX/RX LED	Indicates when the RIM 3500/20 is communicating with other modules in the 3500 rack.
TM LED	Indicates when the 3500 rack is in Trip Multiply
CONFIG OK LED	Indicates that the 3500 rack has a valid configuration.
