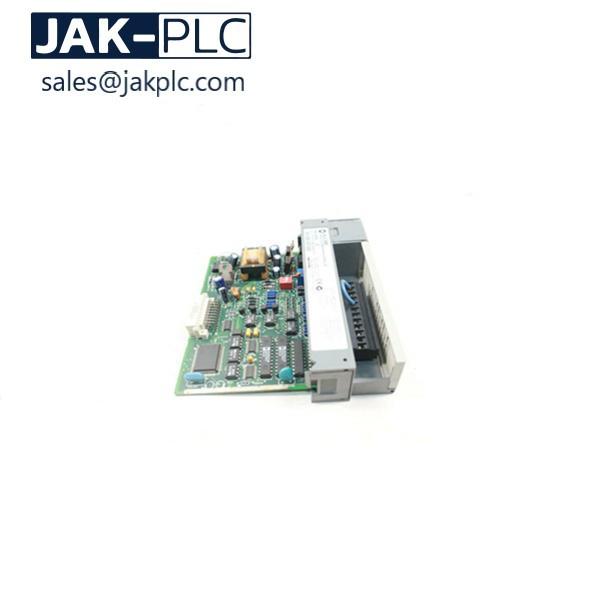

Best Price Allen Bradley SLC-500 1747-L532 Module

100% Original Rockwell Allen Bradley 1747-L532 Module

Introduction

The Allen-Bradley 1747-L532 is an SLC 5/03 Processor that is a part of the SLC 500 system. It is a small, simple, and pocket-sized processor with a wide range of applications such as small process control, material handling, and HVAC control. It contains a PLC-5 processor-based advanced instruction set. It can be stand-alone or distributed throughout a system for SCADA applications. The 1747-L532 processor has a total user memory of 16K words with 12K words for data/program and 4K words for data alone. It has up to 4096 inputs, 4096 outputs, and 480 local analog I/Os. It has a program scan time per keyword of 1 millisecond. The 1747-L532 has a backplane current of 500 mA at 5 Volts DC and of 175 mA at 24 Volts DC. It has a maximum of 2 local I/O chassis with a maximum of 30 module I/O slots in a local I/O chassis.

For communication, it uses DH-485 and RS-232 ports that can be configured for connection to a 1761-NET-AIC converter. For programming, the 1747-L532 it supports RSLogix 500 software. It has standard battery-backed RAM and Flash backup memory. With this processor, the remote I/O scanner module and DeviceNet scanner module can be installed to configure I/O via a universal remote link or a DeviceNet network. The 1747-L532 processor provides 0.44 milliseconds bit-instruction execution time and 10 times the overall system that its competitors do. It has various additional capabilities such as online programming, flash memory upgrades, floating-point math, a built-in real-time clock, key-switch, and calendar. The 1747-L532 is intended for use in clean and dry industrial environments with a 0 to 60 degrees Celsius operating temperature and a 30G of operating shock.

The 1747-L532 Programmable Logic Controller (PLC) is an SLC 500 processor that is also known as SLC 5/03 controller. This controller is designed for use with the Modular Style SLC 500 series that is manufactured by Allen-Bradley. This specific controller is capable of implementing basic and advanced instructions that allows any user to construct a simple user program to complex control logic. These instructions include Bit, Timer, Controller, Comparison, Basic Math, Move, Copy, and Bit Shift, Sequencer, Jump and Subroutine, Messaging, STI, FIFO/LIFO, PID, Advanced Math and Trig instructions.

Allen Bradley Main Products:

1. SLC500:1747/1746 series
2.MicroLogix: 1761/1763/1762/1766/1764 series
3.CompactLogix: 1769/1768 series
4. The ControlLogix: 1756/1794/1760/1788 series
5. PLC-5:1771/1785 series
6.2711,2711P PanelView man-machine interface, touch screen, operation panel
7.22A,22B, 20 small frequency converter,150 soft starter
8. ProSoft: MVI69 / PS69 / MVI56 / MVI94 / MVI71 / MVI46/3150 9. ICS TRIPLEX: T8431 / T8461 / T3401 / T8310

Our Advantage

FAQ:
1.Is the part new?
   Yes, 100% Original brand new
2.How is the package?
   Original factory seal packed
3.What is the lead time?
   In stock: 1-3 working days
4.What is the MOQ:
   1pcs
5.What is the payment term:
   TT and Western Union, other negotiable
6.Where the item ship from?
   Dammam
7.What is the warranty time?
   One year

8. How to delivery the PLC Parts?
   Kindly tell us your address,we check best cost for you
   Or you can use your own courier account or agent, DHL, FEDEX, UPS etc are available.
