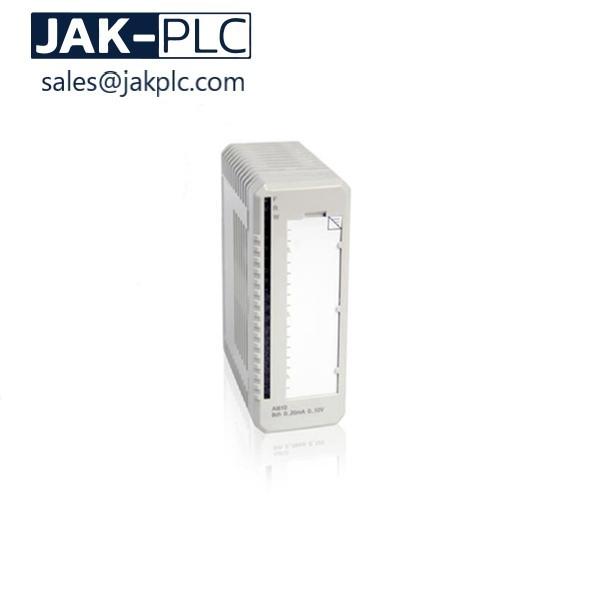

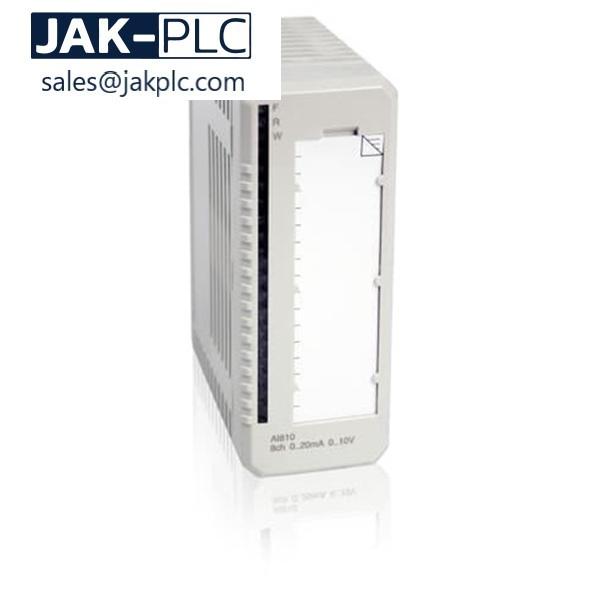

Brand New ABB 3BHE009684R0101 3BHB006485R0001 3BHE009681R0101 Module

ABB 3BHE009684R0101 3BHB006485R0001 3BHE009681R0101 Brand New And Original

Description

The I/O window can be used to check the status of theinputs and outputs. Outputs can be controlled manuallyand inputs can be read from the I/O window. Commoncauses of errors are cable faults or faults in externalequipment. If none of the channels work, check that theinternal or external ±15V supply is OK and correctlyconnected. If the red F-LED is lit, the board is probablyfaulty or the system parameters are incorrect (i.e. theboard is not defined). Refer to Chapter 11 - Inputs &Outputs for procedure.

The SMB is located in the robot. The SMB does nothave any LEDs located on it.The SMB reads the resolvers feedback and convertsthe analog voltage into a digital signal. Then the SMBconverts the digital signal into a serial communication.The position of all six (6) axes resolvers arecommunicated to the robot computer every .5msec.The SMB can be checked most thoroughly with anOscilloscope. The signals to check for are the SerialData Out (SDO) and the Serial Data In (SDI). Anothersignal to check would be the exciter signal going to theresolvers. Use the Oscilloscope to check for properamplitudes and ensure that there is no noise on theselines.If the SMB is replaced, the resolver revolution countswill have to be updated. Refer to Chapter 10 - CalibrationProcedures for the proper procedure.
