Foxboro P0914XB Baseplate

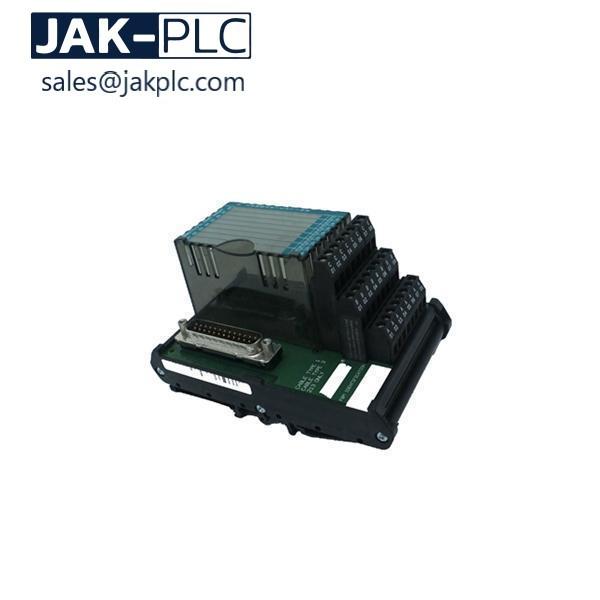

Foxboro P0914XB Baseplate I/A Series Rack Chassis 8 Slot NEW

Difference between the Single and Redundant FBM.

The FBM and the drivers have been developed in such a way that using a single or redundant FBMdoes not require any more or less configuration effort or different software. The only importantdifference is the ECB-block needed for the FBM. In case of the single configuration (FBM232) anECB200 is used, and for the redundant (FBM233) configuration an ECB202 must be configured.This difference will show up in the functions in SMDH (System Management) and off course theavailable information on the ECB-blocks.The two modules in a redundant configuration should be seated on the baseplate directly next toeach other, starting on a uneven position. (1+2, 3+4, 5+6 etc). The 2 FBM's need only 1 ECB block,and are regarded as 1 logical FBM.

Since the letterbug naming convention of 200-series FBM'sdictates that the last 2 characters determines the position of the FBM on the baseplates, this isslightly different for a redundant FBM since it occupies 2 slots. For a redundant FBM, the first 2slots on a baseplate are called “A”, the slots 3+4 are called “B” etc. The left FBM is regarded to asthe “Main” FBM, the right one is the “Backup” FBM. Although both FBM's communicate with theforeign device, only one of these two FBM's transmits the I/O to the CP, and this means that eachFBM acts in certain “Role”. The FBM communicating with the CP is called the “Master” FBM andthe other, “standing by” is the “Tracker”. So, depending on its position on the baseplate, an FBMis the Main or Backup, and depending on the state of the other FBM or the foreign device, boththeir roles can be Master or Tracker. (But not the same role at the same time off course)

FAQ:

1.Is the part new?
   Yes, 100% Original brand new

2.How is the package?
   Original factory seal packed

3.What is the lead time?
   In stock: 1-3 working days

4.What is the MOQ:
   1pcs

5.What is the payment term:
   TT and Western Union, other negotiable

6.Where the item ship from?

   Dammam

7.What is the warranty time?
   One year

8. How to delivery the PLC Parts?
   Kindly tell us your address,we check best cost for you
   Or you can use your own courier account or agent, DHL, FEDEX, UPS etc are available.
