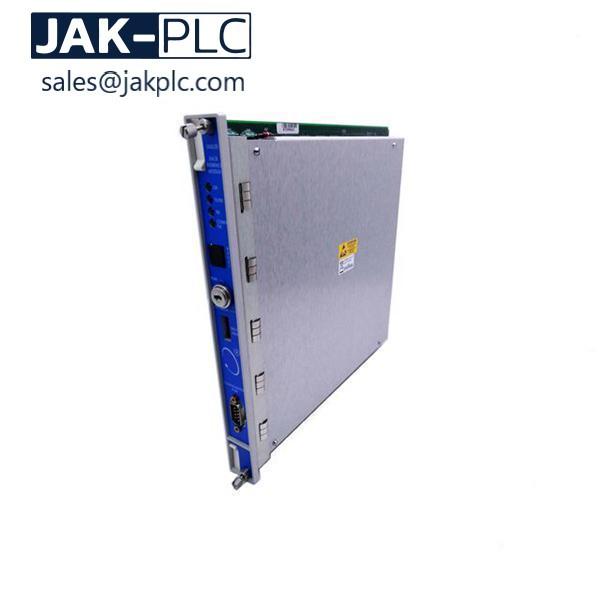

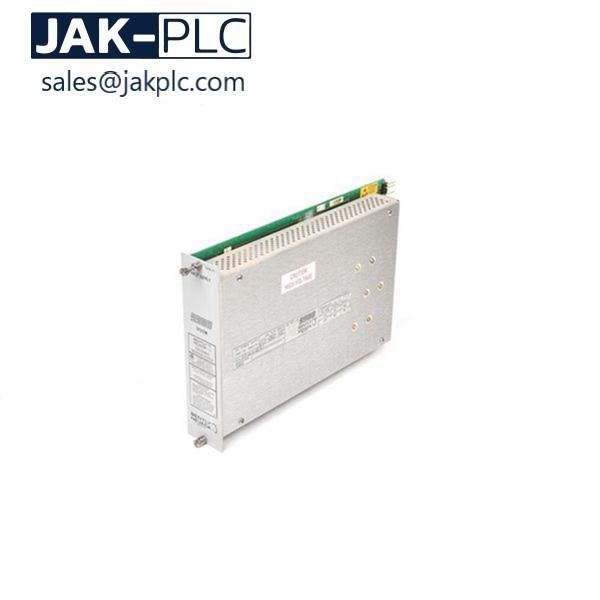

In Stock Bently Nevada 3500/92 136188-01 Bently Nevada Ethernet/RS232 Modbus I/O Module
brand:
Bently Nevadaitem no:
Bently Nevada 136188-01payment:
TT,Western Unionproduct origin:
USAgood stock:
30.0shipping port:
Dammamlead time:
1-3 Dayscondition:
Original Newwarranty:
1 Yearcertificate:
Co,Coodescription:
136188-01product type:
3500/92 136188-01 I/O Modulesystem:
Bently Nevada 3500 Monitor SystemBently 136188-01 Ethernet/RS232 Modbus I/O Module for 3500/92 In Stock
Overview
The 3500/92 Communication Gateway module providesextensive communication capabilities of all rack monitoredvalues and statuses for integration with process control andother automation systems using both Ethernet TCP/IP andserial (RS232/RS422/RS485) communications capabilities. Italso permits Ethernet communications with 3500 RackConfiguration Software and Data Acquisition Software.
The Ethernet connection to the 3500/92 is an RJ45 connectionfor 10BASE-T star configuration Ethernet networks.The 3500/92 supports the communication interfaces,communication protocols, and other features from theoriginal 3500/90 with the exception of the primary valueModbus registers. The 3500/92 now has a ConfigurableModbus Register Utility, which can provide the samefunctionality originally addressed by the primary valueModbus registers.
Specification
| Part No. | 3500/92 |
| I/O Module | 136188-01 |
| Other Modules | 136180-01, 125736-01, 133323-01, 136188-02 |
| Inputs Power Consumption | 5.0 watts typical with ModbusRS232/ RS422 I/O Module 5.6 watts typical with Modbus RS485 I/O Module |
| Outputs OK LED: | Indicates when the 3500/92 is operating properly. |
| Outputs TX/RX LED: | Indicates when the 3500/92 is communicating with other modules in the 3500 rack |
| BNC Host Protocol | Communication with 3500 Configuration Software and 3500 Data Acquisition and Display Software over Ethernet TCP/IP |
| Modbus | Based on AEG Modicon PIMBUS-300 Reference Manual.Uses Remote Terminal Unit (RTU) transmission mode. |
