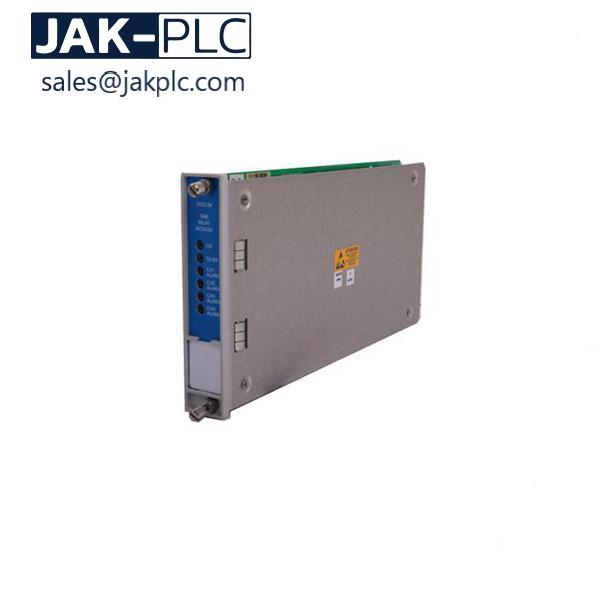

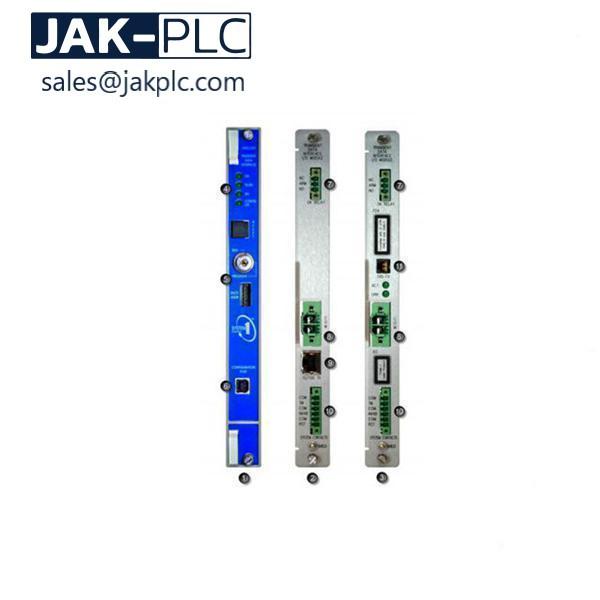

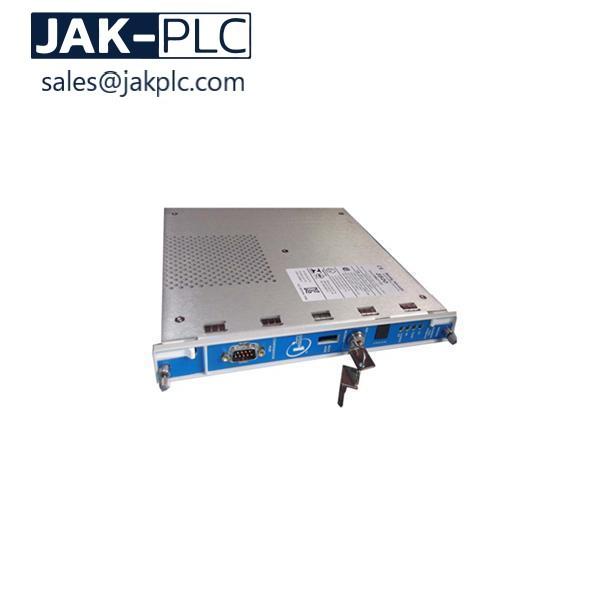

GE Bently Nevada 146031-01 TX I/O Module For 3500/22M

Bently Nevada 3500/22M 146031-01 I/O Module For 3500 Monitor System

Overview

The 3500/22M Transient Data Interface (TDI) is the interfacebetween the 3500 monitoring system and compatiblesoftware (System 1 Condition Monitoring and Diagnosticsoftware and 3500 System Configuration software). The TDIcombines the function of a 3500/20 Rack Interface Module(RIM) with the data collection capability of a communicationprocessor such as TDXnet.The TDI resides in the slot adjacent to the power supplies of a3500 rack. It interfaces with M series monitors (3500/40M,3500/42M, etc.) to continuously collect steady state andtransient dynamic (waveform) data and pass this data throughan Ethernet link to the host software. Refer to theCompatibility section at the end of this document for moreinformation

Specification
