GE Bently Nevada 330180-50-05 3300 XL 8mm Proximitor Sensor

GE Bently Nevada 330180-50-05 Proximity for 3300 XL 8 mm Proximitor Transducer System

Overview

The 3300 XL 8 mm Proximity Transducer System consists of:

One 3300 XL 8 mm probe, one 3300 XL extension cable, and one 3300 XL Proximitor Sensor

The system provides an output voltage that is directly proportional to thedistance between the probe tip and the observed conductive surface and canmeasure both static (position) and dynamic (vibration) values. The system’sprimary applications are vibration and position measurements on fluid-filmbearing machines, as well as Keyphasor* reference and speed measurements3.The 3300 XL 8 mm system delivers the most advanced performance in our eddycurrent proximity transducer systems. The standard 3300 XL 8 mm 5-metresystem also fully complies with the American Petroleum Institute’s (API) 670Standard (4th Edition) for mechanical configuration, linear range, accuracy, andtemperature stability. All 3300 XL 8 mm proximity transducer systems providethis level of performance and support complete interchangeability of probes,extension cables, and Proximitor sensors, eliminating the need to match orbench calibrate individual components.

Features

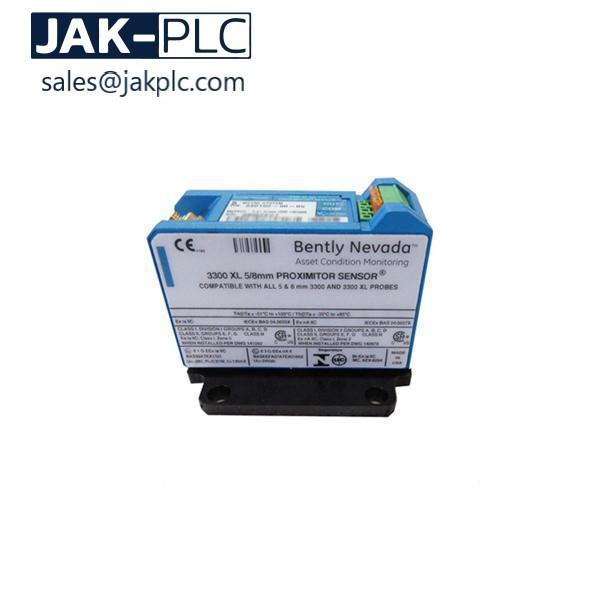

The 3300 XL Proximitor Sensor incorporates numerous improvements overprevious designs. Its physical packaging allows you to use it in high-density DINrail installations. You can also mount the sensor in a traditional panel mountconfiguration, where it shares an identical 4-hole mounting “footprint” with olderProximitor Sensor designs. The mounting base for either option provideselectrical isolation and eliminates the need for separate isolator plates. The 3300XL Proximitor Sensor is highly immune to radio frequency interference, allowingyou to install it in fiberglass housings without adverse effects from nearby radiofrequency signals. The 3300 XL Proximitor Sensor’s improved RFI/EMI immunitysatisfies European CE mark approvals without requiring special shielded conduitor metallic housings, resulting in lower installation costs and complexity.

Specifications

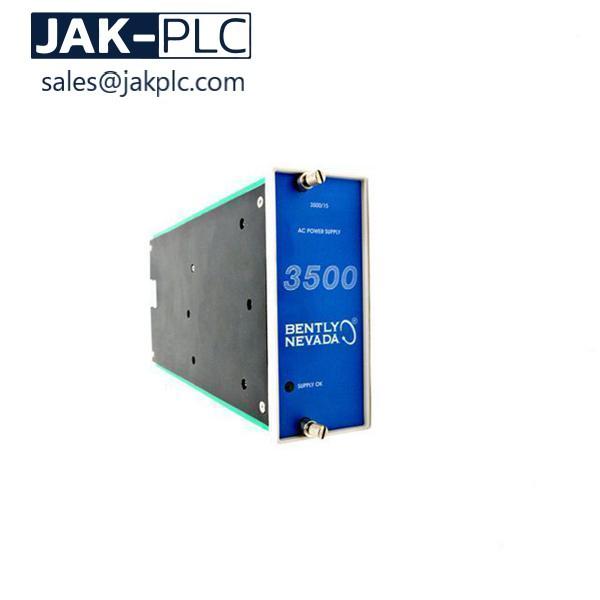

Bently Nevada 3500 Series in Stock

3500/05, 3500/06, 3500/08, 3500/15, 3500/20, 3500/22M , 3500/25, 3500/32, 3500/33, 3500/34, 3500/40M, 3500/42, 3500/65 184469-01, 3500/44M, 3500/45, 3500/46, 3500/50, 3500/53, 3500/60, 3500/61, 3500/62, 3500/64M, 3500/65,3500/70M, 3500/60, 3500/65,3500/72M,3500/77M,3500/90, 3500/33,3500/33 149992-01,3500/33 149986-01, 3500/53, 3500/53 133388-01, 3500/53 133396-01, 3500/65 184522-01, 3500/92, 3500/92 136180-01, 3500/92(136180-01), 3500/15 125840-01, 3500/15 133300-01, 3500/15 127610-01
