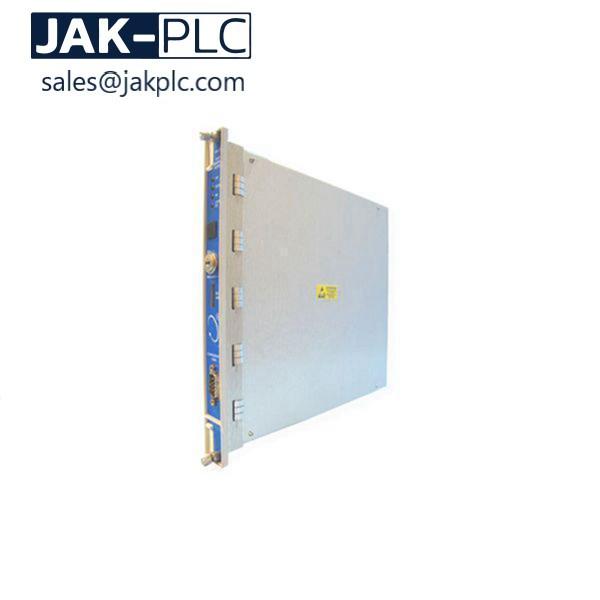

GE Bently Nevada 3500/20 125744-02 Standard Rack Interfac Module

100% Original New Bently Nevada 3500/20 125744-02 Rack Interface Module

brand:
Bently Nevada
item no:
GE Bently Nevada 3500/20 125744-02
payment:
TT,Western Union
product origin:
USA
good stock:
20.0
shipping port:
Dammam
lead time:
1-3 Days
condition:
Original New
warranty:
1 Year
certificate:
Co,Coo
description:
Bently Nevada 3500/20 125744-02 Rack Interface Module
product type:
Bently Nevada 3500 CPU Module
system:
Bently Nevada 3500 Monitor System

Product Details
FAQs

Bently Nevada 3500/20 125744-02 Rack Interface Module for 3500 Monitor System

Overview

The Rack Interface Module (RIM) 3500/20 125744-02 is the primary interface to the 3500 rack. Itsupports a proprietary protocol used to configure the rack and retrievemachinery information. The RIM must be located in slot 1 of the rack (next to thepower supplies). For Triple Modular Redundant (TMR) applications, the 3500 System requires aTMR version of the RIM. In addition to all the standard RIM functions, the TMR RIMalso performs "monitor channel comparison." The 3500 TMR configurationimplements monitor voting using the setup specified in the monitor options.Using this method, the TMR RIM continually compares the outputs from three (3)redundant monitors. If the TMR RIM detects that the information from one ofthose monitors is no longer within a configured percentof the information of theother two monitors, it will flag that the monitor is in error and place an event inthe System Event List.

Details

Spares	Description
125744-02	Standard Rack Interfac Module
125744-01	TMR Rack Interface Module
135031-01	RIM I/O Module with Modem Interface
125768-01	RIM I/O Module with RS232/RS422 Interface
125760-01	Data Manager I/O Module
128755-01	Firmware IC (for PWA 125744-01 Rev P or later
129768-01	RIM Operation and Maintenance Manual
