GE Bently Nevada 3500/22M 288055-01 Transient Data Interface Module

Bently Nevada 3500/22M 138607-01 Transient Data Interface Module Order No. 288055-01

brand:
Bently Nevada
item no:
Bently Nevada 3500/22M 288055-01
payment:
TT,Western Union
product origin:
USA
good stock:
20.0
shipping port:
Dammam
lead time:
1-3 Days
condition:
Original New
warranty:
1 Year
certificate:
Co,Coo
product type:
Bently Nevada 3500 288055-01 CPU Module
system:
Bently Nevada 3500 Monitor System

Product Details
FAQs

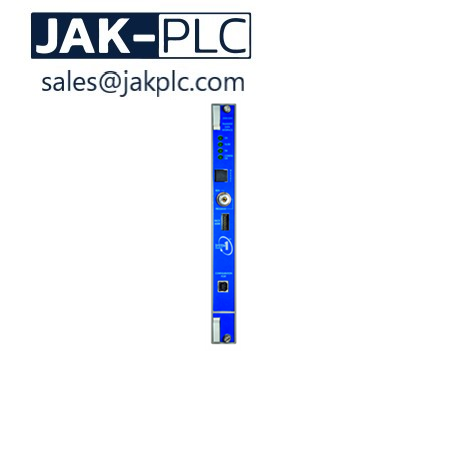

Bently Nevada 3500/22M 288055-01 CPU Transient Data Interface Module

Overview

The 3500/22M 288055-01 Transient Data Interface (TDI) is the interfacebetween the 3500 monitoring system and compatiblesoftware (System 1 Condition Monitoring and Diagnosticsoftware and 3500 System Configuration software). The TDIcombines the function of a 3500/20 Rack Interface Module(RIM) with the data collection capability of a communicationprocessor such as TDXnet.The TDI resides in the slot adjacent to the power supplies of a3500 rack. It interfaces with M series monitors (3500/40M,3500/42M, etc.) to continuously collect steady state andtransient dynamic (waveform) data and pass this data throughan Ethernet link to the host software. Refer to theCompatibility section at the end of this document for moreinformation

Specifications

Part No.	3500/22M
Order No.	288055-01
Power Consumption	10.5 Watts
Front Panel	USB-B
10Base-T/, 100Base-TX I/O	10Base-T or 100Base-TX;Ethernet, autosensing
100Base-FX I/O	100Base-FX Fiber-Optic Ethernet
