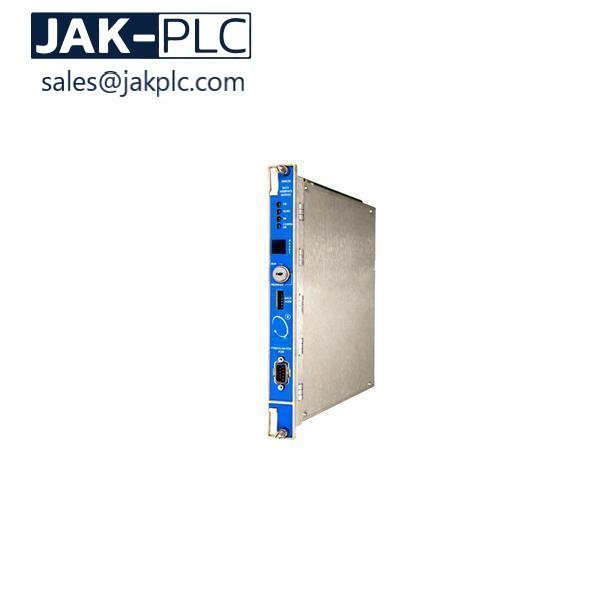

GE Bently Nevada 3500/53 133396-01 Electronic Overspeed Detection Module

GE Bently Nevada 3500/53 133396-01 Electronic Overspeed Detection Module in Stock

brand:
Bently Nevada
item no:
Bently Nevada 3500/53 133396-01
payment:
TT,Western Union
product origin:
USA
good stock:
20.0
shipping port:
Dammam
lead time:
1-3 Days
condition:
Original New
warranty:
1 Year
certificate:
Co,Coo
product type:
Bently Nevada 3500/53 133396-01 Electronic Overspeed Detection Module
system:
Bently Nevada 3500 Monitor

Product Details
FAQs

GE Bently Nevada 3500/53 133396-01 DCS Overspeed Detection Module

Overview

The Bently Nevada™ Electronic Overspeed Detection System 3500/53 133396-01 for the 3500 SeriesMachinery Detection System provides a highly reliable, fast response, redundanttachometer system intended specifically for use as part of an overspeedprotection system. It is designed to meet the requirements of AmericanPetroleum Institute (API) Standards 670 and 612 pertaining to overspeedprotection.3500/53 modules can be combined to form a 2-out-of-2 or a 2-out-of-3(recommended) voting system.The Overspeed Detection System requires the use of a 3500 rack with redundantpower supplies.

Technical Data

Part No.	Bently Nevada 3500/53
Order No.	Bently Nevada133396-01
Input Impedance	20 k Ω.
Power Consumption	8.0 watts, typical.
Transducers	Bently Nevada 3300 8 mmProximitor 3300 16 mm HTPS,7200 5 mm, 8 mm, 11 mm, and 14mm Proximitor; 3300 RAMProximitor, or Magnetic pickups.
Max switchedcurrent:	5A
Max switched power:	dc: 120 Wac: 600 VA.
Monitor Module Dimensions(Height x Widthx Depth):	241.3 mm x 24.4 mm x 241.8 mm(9.50 in x 0.96 in x 9.52 in).
Weight:	0.82 kg (1.8 lb.).
