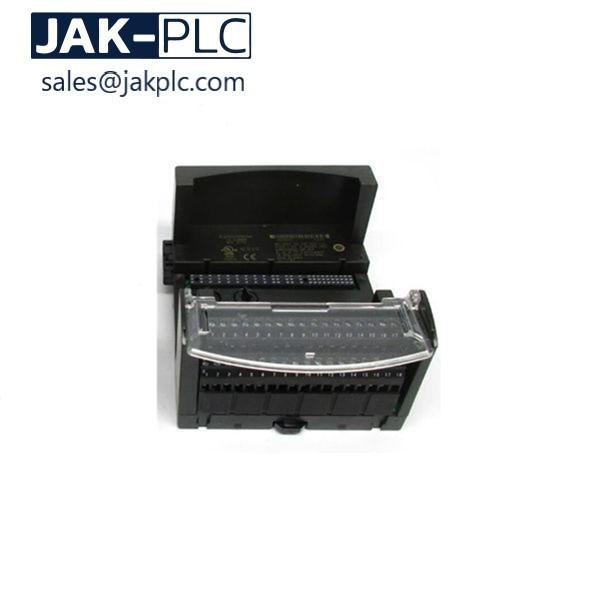

GE Fanuc IC200ALG620 Module

Hot sale new and original IC200ALG620 in stock

Description

IC200ALG620 is a VersaMax Analog Input RTD Module that accepts input signals from up to 4 RTD with 16 bits of resolution. The IC200ALG620 is unique in that it requires no external power supply as the excitation current for the RTD is provided by the module when configured to the RTD type. The RTD Analog Input Module allows inputs from four independent three or four wire RTDs. These can be platinum, nickel/iron, nickel, or even copper depending on user preference and availability.

Specific features for the IC200ALG620 include selectable resistance measurements in tenths of degrees or ohms. Individual channel configuration is featured with selectable resistance ranges of 0-500 or 0-3000 ohms. Reports of high/low, open wire, under/over range, and input short alarms are also standard. The IC200ALG620 offers two data acquisition rates based on the 50 or 60 Hz line frequencies.

As with many modules, LED indicators are standard and indicate normal operation, updates, errors, or lack of power in the backplane. Automatic A/D calibration occurs at power-up and is repeated periodically to account for ambient temperature changes around the module. The RTD input module provides for four words on input data and is compatible with a number of PLC CPU and NIU versions of 1.10 or higher in most cases.

Other brand

You May Be Interested In

Packaging & Shipping

1.All the goods will be tested before shipment.
2. Packing in professional anti-static bag.
3. We can ship to you by DHL/TNT/UPS/Fedex... Pls contact us directly.
