GE Fanuc IC693MDL741C Module

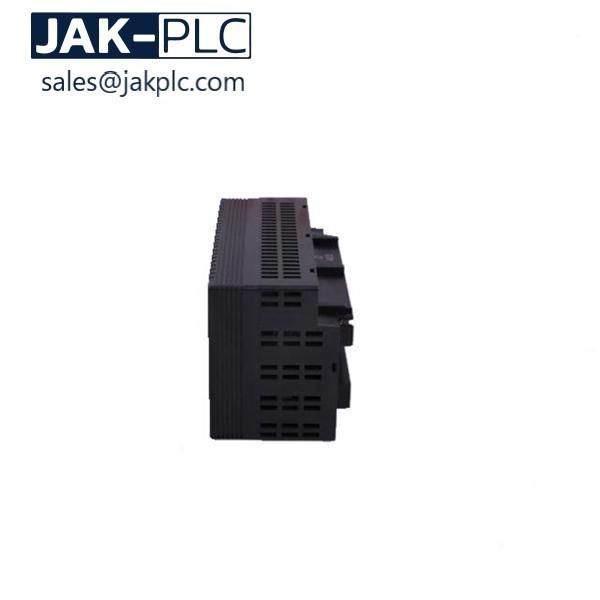

GE FANUC IC693MDL741C OUTPUT MODULE

brand:
GE Fanuc
item no:
IC693MDL741C
payment:
T/T, Western Union,Credit Card
product origin:
USA
good stock:
6.0
shipping port:
Dammam, Saudi Arabia
lead time:
1-3 Working Days
condition:
Brand New
warranty:
One Year
certificate:
COO
description:
Output Module
product type:
Series 90-30

Product Details
FAQs

GE Fanuc IC693MDL741C PLC Module Programmable Logic Controller

Description

The GE Fanuc 90-30 Series IC693MDL741 is a 12/24 positive logic DC output module. This model uses positive logic so the module sources current from the positive power bus terminal or common user to the required loads. The output electronic device is placed in between the output module and the power bus. The rated voltage required for the IC693MDL741 module is 12/24 volts DC, and the output current is maximum of 0.5 amps per point with a maximum of 2 amps per common.

The IC693MDL741 provides 16 common points categorized into two equal groups with eight output points, each having a common output pin. The module has a hinged door; an insert in placed in between the inside and outside surface of the door. When this door is closed, the inside surface of the hinged door contains the wiring information of the circuit whereas outside surface has the identification information of the circuit. The blue color on the left side of insert indicates that IC63MDL741 is a low voltage type module.

GE IC693MDL741C
