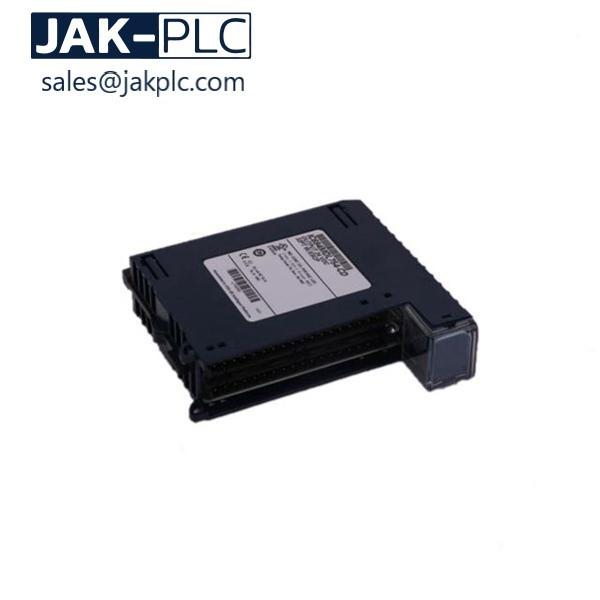

GE Fanuc IC697PWR711 Module

GE Fanuc IC697PWR711 Module New In Stock

Description

The IC697PWR711 is a GE Fanuc manufactured 100 Watt Power Supply Module for the Series 90-70. Features include operation from 120 VAC, 240 VAC, or 125 VDC, and there are three output voltages (100 watts total) as follows: +5 VDC output up to 20 amps; +12 VDC output up to 2 amps; -12 VDC output up to 1 amp. Other highlights include slide-in rack mount construction, electronic short circuit overcurrent protection, two rack operation from a single power supply, power factor correction for AC operation, and a jumper for overvoltage protection devices.

This module is rack-mounted and plugs directly into a 48-pin backplane-mounted connector in the leftmost slot of any standard IC697 rack or VME Integrator’s rack. It provides +5 volt, +12 volt and -12 volt power, and logic level sequencing signals to the backplane. The IC697PWR711 can be used in a single rack application or may to provide power to a second rack if the total load is within the supply rating. A prewired cable allows interconnection to the second rack. The power supply output will ride through at least one input line cycle with a total loss of input power at full load. Protection is delivered for overcurrent and overvoltage fault conditions.

This power supply module can operate from 120 VAC or 240 VAC nominal inputs. A nominal 125 VDC source is also an option. The specified range of operation is from 90 VAC to 264 VAC and from 100 VDC to 150 VDC. For uninterrupted operation (more than one hour) at low line voltages and high temps, some power derating must be applied.
