GE Fanuc IS220PRTDH1B Module

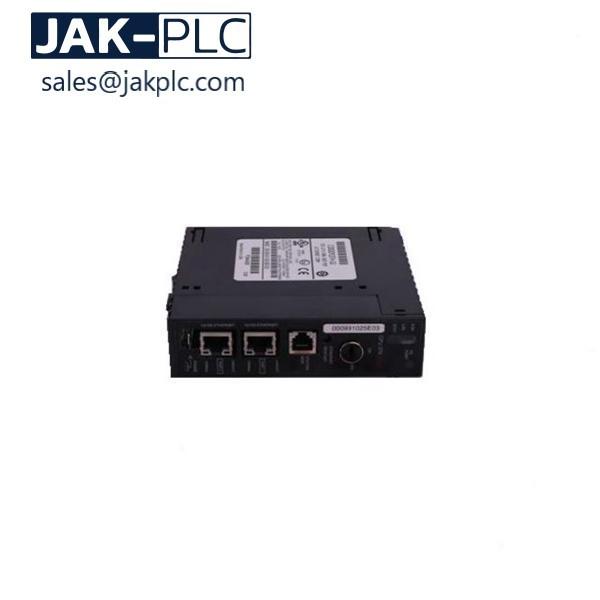

GE Fanuc IS220PRTDH1B Original And Brand New Module

Description

S-type boards have one I/O pack for simplex and dual redundant systems. They arehalf the size of T-type boards and are DIN-rail or surface mounted. Two versions ofthe boards are available, H1 and H3. H1 boards have fixed terminal blocks, and H3boards have removable terminal blocks. A H2 version is available for mounting ofcustom blocks such as spring-cage or insulation displacement.S-type boards have box type terminal blocks that accept one 3.0 mm2 (#12AWG)wire or two 2.0 mm2 (#14AWG) wires with 300 V insulation per point. Screwspacing is 5.08 mm (0.2 inch) minimum, center-to-center. A shield strip is providedto the left of each block. It can be connected to a metal base for immediate groundingor floated to allow individual ground wires from each board to be wired to acentralized, cabinet ground strip. Signal flow begins with a sensor connected to a terminal block on a board. There aretwo types of boards available. T-type boards contain two 24 point, barrier-type,removable, terminal blocks. Each point can accept two 3.0 mm2 (#12AWG) wireswith 300 V insulation per point with spade or ring type lugs. In addition, captiveclamps are provided for terminating bare wires. Screw spacing is 9.53 mm (0.375inch) minimum, center-to-center.A shield strip is provided next to each block, which is actually the left-hand side ofthe metal base where the board is mounted. Wide and narrow boards are arranged invertical columns of high and low-level wiring that can be accessed from top and/orbottom cable entrances. An example of a wide board is a board that containsmagnetic relays with fused circuits for solenoid drivers. T-type boards are normallysurface mounted, but can also be DIN-rail mounted.

More About GE Fanuc

IC693CPU363Series 90-30 Module CPU Backplane
IC200PBI001VersaMax I/O Module Profibus Interface Unit
IC693APU300Series 90-30 High Speed Counter Module
IC693MDL730Series 90-30 Output Module 2 Amp Positive Logic 8 Points
IC697CMM711Series 90-70 Communication Coprocessor
IC697BEM731Controller Module Series 90-70 Genius I/O Bus Controller
IC200ALG430VersaMax Analog Mixed Module
IC697PWR711Series90-70 Power Supply Module
IC670MDL640Field Control Input Module
IC693CPU323Series 90-30 CPU Module
IC695CPU310RX3i CPU Module Series
