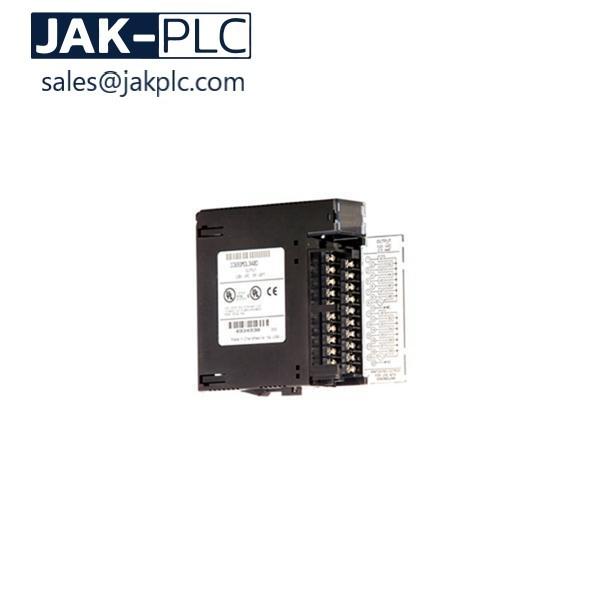

GE Fanuc New Original Module IC694ALG392

100% Brand New Original Plc Inverter Best Price IC694ALG392

Description

The GE Fanuc IC694ALG392 High-Density Analog Output Module is an 8-channel current/voltage analog output module designed for the GE RX3i PACSystems control system. This module provides 8 single-ended output channels that are capable of accepting either current loop outputs or voltage outputs. Selection between current or voltage outputs can be achieved via software configuration. The outputs can be configured for a 0 to 10 Volts DC (unipolar), -10 to +10 Volts DC (bipolar), 0 to 20 milliamps, or 4 to 20 milliamps output range. Each IC694ALG392 Module output is capable of converting 15 to 16 bits of binary data from the CPU to analog data for output devices. The IC694ALG392 Module refreshes/updates every output channel every 8 milliseconds. The operators can switch between the current mode and the voltage mode via easy and simplified software configuration. The IC694ALG392 Module reports open-wire faults and other fault conditions to the CPU in the current mode.lies consist of 6 terminals used for user link up. These links include; AC Power Source, 20 VAC power source, and ground wires from the 240 VAC power source. They are attached to the system via the top 3 terminals on the front of the power supply. Their sensitivity to an AC/DC input power supply is normally low.

Other brand

You May Be Interested In

Our services

Wedouble check and test the goods before shipping, we have experienced and   dedicated technical staff for inspectingevery module and card as to ensure the end user use them perfectly without anyprobelm and added trouble.

Wehelp customer save cost with high quality and comparative price. We care aboutwhat customer care, and see the end user's benefits as important, we would liketo build long-term business relationship with customers.

FAQ

Q:Do you have a warranty?

A:Yes, We have 12 months warranty.

Q:Is it 100% brand new?

A:Yes. New and original.

Q:What is the type of payment? Paypal?

A:100% T/T Payment in Advance

Q:Which country or area can be shipped?

A:Worldwide.

Q:How do you ship goods?

A:By air.(DHL/TNT/UPS/FEDEX)

Q:How long is your delivery time?

A:Generally it is 2-3 days if the goods are in stock. If the goods are not instock, Need to negotiae.

Q:Are you trading company or manufacturer ?

A:We are trading company.
