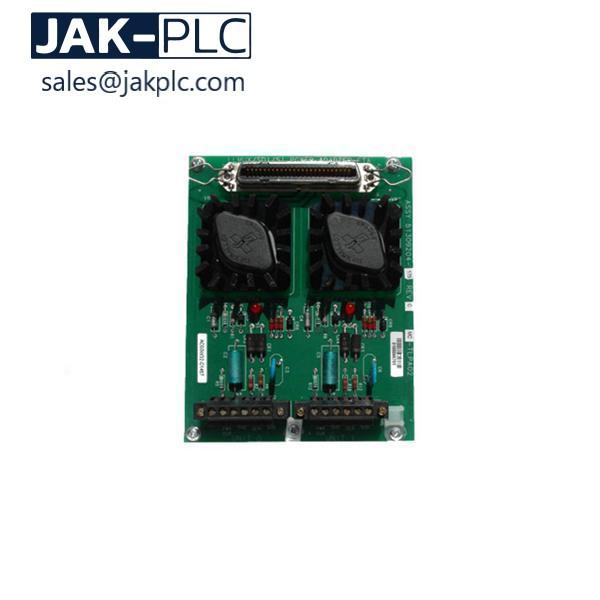

Honeywell 51196653-100 Module

51196653-100 Honeywell TDC 3000 DCS Center

Introduction

Safety Manager™ supports the integration of Safety Manager into Experion™PKS which unifies Honeywell’s safety controller with its equally reliable Experionplatform. The integration is realized through the Safety Manager UniversalSafety Interface (USI) via High Speed Ethernet (HSE) on the Fault TolerantEthernet (FTE) layer, which is placed in the control processor of the SafetyManager Controller. This USI module makes Safety Manager an integrated partof the Experion architecture, which means that Safety Manager relatedinformation can easily be exchanged between Safety Manager and Experion.This allows information to be shared and made available on the Experion Serverdisplays.

Safety Manager integrates the sequence-of-event (SOE) features as supportedby Safety Manager into the Experion server. Safety Manager supports SOE fordigital inputs and outputs, analog inputs and outputs, and marker points. Eachtag name that has been “SOE-enabled” is time-stamped by the Safety Managercontroller and reported to the Experion Server, where it is incorporated into thestandard Experion Server SOE list which allows for improved search, filter andautomated archive functionality. Standard SOE displays are available to view theevents as they are reported.

Related Honeywell PLC modules

Honeywell RHMUX Remote FTA MC-GRMT01
Honeywell Digital Output 120/240 Vac Solid-State FTA MU-TDOA13 MC-TDOA13
Honeywell Digital Output 3-30 Vdc Solid-State FTA MU-TDOD13 MC-TDOD13
Honeywell Digital Output 3-30 Vdc Solid-State FTA MU-TDOD14 MC-TDOD14
Honeywell Digital Output 31-200 Vdc Solid-State MU-TDOD23 MC-TDOD23
Honeywell Digital Output 24 Vdc, 100 ma Nonisolated FTA MU-TDON12 MC-TDON12
Honeywell Digital Output 120 Vac/125 Vdc Relay FTA MU-TDOR12 MC-TDOR12
Honeywell Digital Output 240 Vac/125 Vdc Relay FTA MU-TDOR22 MC-TDOR22
Honeywell Digital Output 24 Vdc FTA MU-PDOY22 MU-TDOY22 MC-TDOY22
Honeywell Digital Output Relay FTA MU-PDOY22 MU-TDOY23 MC-TDOY23

Original And New
