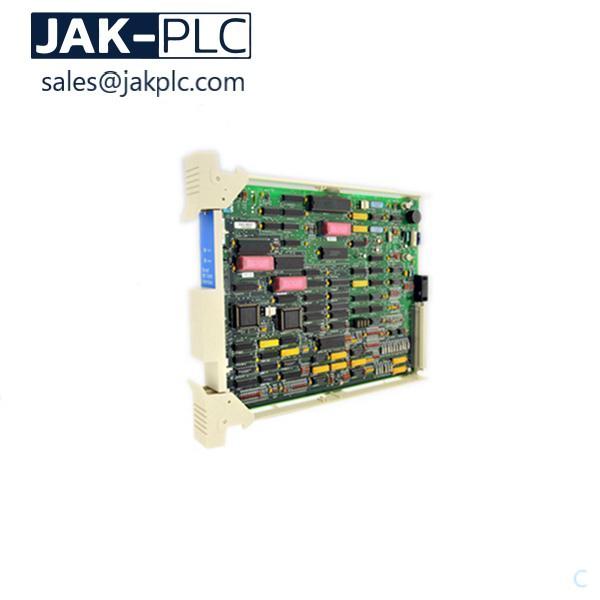

Honeywell 51304042-100 Module

Honeywell New 51304042-100 In Stock

Overview

All the nodes in both towers communicate with each other through the TPLCN (TwistedPair Local Control Network) data communications network, using the RS-485communications interface standard. This network is similar to the LCN (Local ControlNetwork) used in other TDC 3000X equipment, but the noncoaxial RS-485 (twisted pair)network has been chosen here because of its simplicity and the short physical distancesbetween nodes.

High-speed serial data is passed between nodes at 5 megabits per second (mega = million)and follows a token-passing protocol. This protocol is identical to that used on the LCN.There is a user-installed kit that connects the base Enhanced Micro TDC 3000 to a standardLCN system. The kit includes an LCN cabinet that accommodates 4 or 6 empty chassis; afan module, power supply, and I/O card for each chassis; Winchester Disk Adapter (WDA)Module; and History Module. Refer to subsection 2.9 for additional information on theLCN upgrade.

Honeywell Products

9904-TPR ControlNet T Tap right angle
9904-TPS ControlNet T Tap straight angle
9904-TPYR ControlNet Y Tap right angle
9904-TPYS ControlNet Y Tap straight angle
TC-MC1BNC Connector, BNC cable
TC-MC2BNC 2 BNC Connectors bullet
TC-MC3BNC 2 BNC Connectors barrel
TC-MC5BNC 2 BNC Connector isol-bulkhead
TC-MC6BNC 2 BNC Connector, right-angle
TC-TCXBNC ControlNet Terminator
TC-TBCH Field Wiring Connector 36 pos
TC-TBNH Field Wiring Connector 20 pos
TC-CCN013 CNI Module, Single Media
TC-CCR013 CNI Module, Redundant Media
TC-CEN011 Ethernet Interface Module
TC-PCIC01 ControlNet Interface Card (PCI Bus) Upgrade
TK-CCN013 CTRLNET IF REDUN CC
TC-BATT01 Battery - Control Processor
TC-BATT03 Battery - Battery Extension Module
