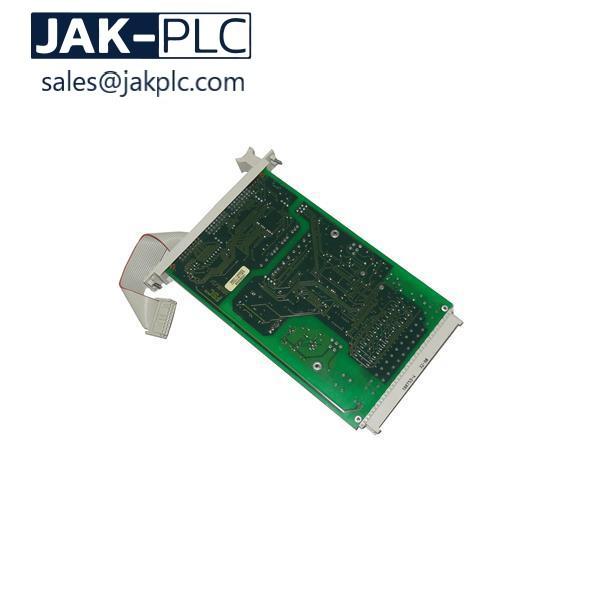

Honeywell 51305900-175 Module

Honeywell Inverter PLC MC-TAIH04 51305900-175

Overview

The Enhanced Micro TDC 3000 Control System consists of two cabinets (also called"towers") which together contain the electronics, two cartridge disk drives, and a historymodule. The cabinet electronics support up to four color monitors, four keyboards, andoptional touchscreens or trackballs. A printer is also connected to the system.Two electronics modules, one housed in each tower, provide all of the electronics for theEnhanced Micro TDC 3000 Control System (excluding peripherals).

These modules,called Multinode Modules, are each capable of holding four TDC 3000 Nodes.Although the Advanced Process Manager (APM) is part of the Enhanced Micro TDC 3000Control System, it is not described in this manual. See subsection 1.5 for a list ofpublications that discuss the Advanced Process Manager and the Universal ControlNetwork (UCN).Figure 1-2 is a representation of some of the nodes used to construct a sample EnhancedMicro TDC 3000 Control System.

Honeywell Products

TC-KIOL05 Cable, I/O Link Protection, 5M
TC-KIOL10 Cable, I/O Link Protection, 10M
TC-KSM003 SIM to power adapter cable ( 3 meters)
TC-MDP081 Pulse Input Module, 8 ch in/2 ch out, CIOM-A
TC-SMPC01 SIM FTA power adapter 85-265 VAC
TC-SMPD01 SIM FTA power adapter 24 VDC
TC-XXXXX2 Filler Panel
TK-FFIF01 FIELDBUS INTERFACE MODULE (CC)
TK-IOLI01 LIM Module CC
TK-MDP081 Pulse Input Module, Coated
TK-MUX021 Serial Interface Module, Coated
9904-CTK Cnet Toolkit
TC-KCC200 ControlNet Trunk Cable 200M
TC-KCC500 ControlNet Trunk Cable 500M
TC-KCC900 Cnet Trunk Cable 275M
TC-KCCX01 ControlNet Trunk Cable 1M
TC-KCCX03 ControlNet Trunk Cable 3M
