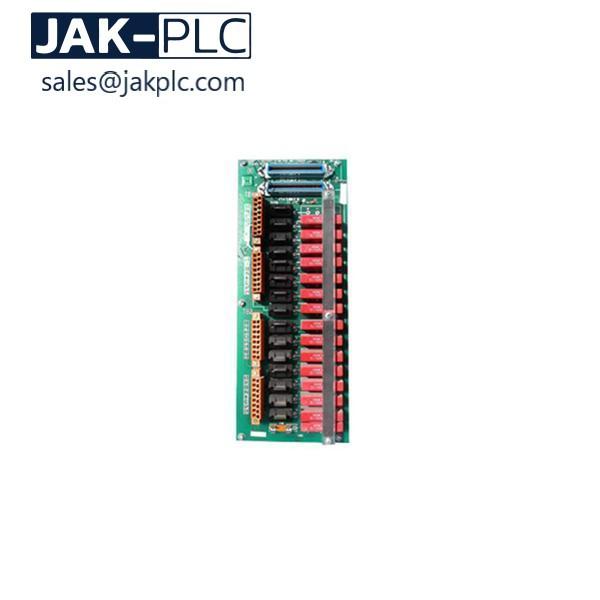

Honeywell 51309152-175 Module

Honeywell 51309152-175 100% New

Overview

The Enhanced Micro TDC 3000 Control System is an extremely compact, yet fullyfunctional control system in the Honeywell TDC 3000X family. Figure 1-1 is anillustration of the basic Enhanced Micro TDC 3000 Control System. This control systemcommunicates to the process via the Honeywell Universal Control Network (UCN). Theprocess can be monitored and controlled by Program Manager or Advanced ProcessManager.

The Enhanced Micro TDC 3000 models have the following characteristics and features:

• Only “version A” models (with 1 US node) are offered as the base system. Theold”version B” models (with 2 US nodes) are no longer offered as a base system (theold”version B” models are equivalent to a “version A” model, plus an optional USnode).

• All nodes are equipped with K2LCN processors.

• The base models will include an Advanced Process Manager (APM) as standardequipment.

• The minimum AM processor memory is 4 MW (the base system models are offered withAM nodes in two memory sizes — either 4 MW or 8 MW).

• The US included with the base system has 6 MW processor memory and supports‘Universal’ personality.

• The US node in the base system is equipped with dual 150 MB Bernoulli cartridge‘multi-drives’. The new ‘multi-drives’ are compatible with 35 MB

• The HM included in the base system has a 875 MB hard drive and 3 MW processormemory.

• The NIM included in the base system has 3 MW processor memory.

• The US monitor and printer are not included with the “R500-Ready” Enhanced MicroTDC 3000 models. These two peripherals have their own model numbers and must beordered separately. The operator’s keyboard, however, is included with the base systemmodel.

Honeywell Products

9904-CP ControlNet Access Cable
9904-TPR ControlNet T Tap right angle
9904-TPS ControlNet T Tap straight angle
9904-TPYR ControlNet Y Tap right angle
9904-TPYS ControlNet Y Tap straight angle
TC-MC1BNC Connector, BNC cable
TC-MC2BNC 2 BNC Connectors bullet
TC-MC3BNC 2 BNC Connectors barrel
TC-MC5BNC 2 BNC Connector isol-bulkhead
TC-MC6BNC 2 BNC Connector, right-angle
TC-TCXBNC ControlNet Terminator
TC-TBCH Field Wiring Connector 36 pos
TC-TBNH Field Wiring Connector 20 pos
TC-CCN013 CNI Module, Single Media
TC-CCR013 CNI Module, Redundant Media
TC-CEN011 Ethernet Interface Module
TC-PCIC01 ControlNet Interface Card (PCI Bus) Upgrade
TK-CCN013 CTRLNET IF REDUN CC
TC-BATT01 Battery - Control Processor
TC-BATT03 Battery - Battery Extension Module

You May Like

FAQ

Q) What is your advantage?
A)Competitive Price Fast Delivery Thoughful service.

Q) What about payment?
A)T/T, Western Union, Credit Card.

Q) What is the warranty?
A)The  Process Automation warranty  is 12 months from date of shipment.


Q) What is the price?
A) The target pricing is to be competitive with the 3 rd  party surplus market. The pricing is subject to change, and the percentage as compared to new varies by product.
