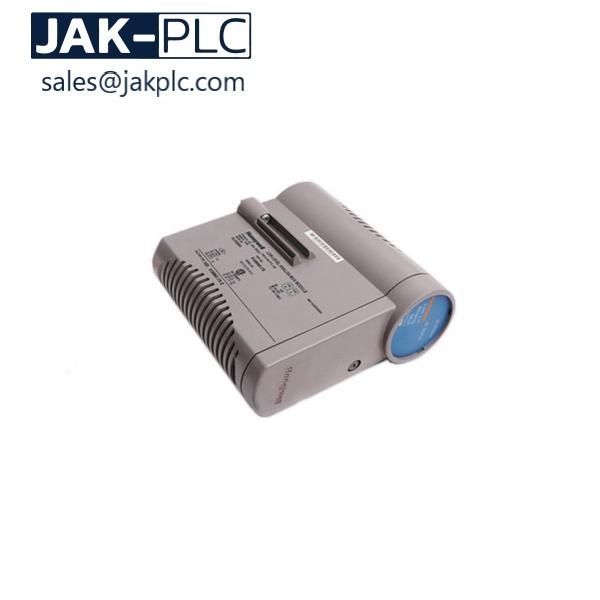

Honeywell CC-PAIHO1 Module

Honeywell CC-PAIHO1 Module C300 System

Overview

Series 8 control hardware consists of the following system components:

1.C300 Controller is a distributed process controller and I/O gateway for the ExperionLX system. The C300 Controller supports configuration, load and execution of thestandard function blocks.

2.Series 8 Input/Output Modules that feature AI-HL - High Level Input, AO - AnalogOutput, HART-capable AI and AO modules, and TC/RTD module. Digital inputmodules that support 24V DC inputs, a Digital Output module that provides 24 VDC,and DI-SOE that supports sequence of events.

All Series 8 control hardware is constructed using the same form factor; that is, the C300Controller modules, and Series 8 I/O modules, and Series 8 FIMs all mount on theirassociated Input Output Termination Assemblies (IOTAs), which are installed onchannel hardware specifically designed to support Series 8 hardware installation. Themodule's circuit board assemblies are housed in a plastic case with a round faceplatethat identifies the module type and model number along with status LEDs and a fourcharacter alphanumeric display. The IOTA contains connectors that accept theassociated control module and the various I/O connectors for cables that connect toother Series 8 control hardware. Figure 1 shows an example of the design.

The C300 Controller is constructed using the Series C form factor that employs an InputOutput Termination Assembly (IOTA) and an electronics module which mounts andconnects to the IOTA.The C300 Controller supports configuration, load and execution of the standard functionblocks. Note that there are a few exceptions defined below.
