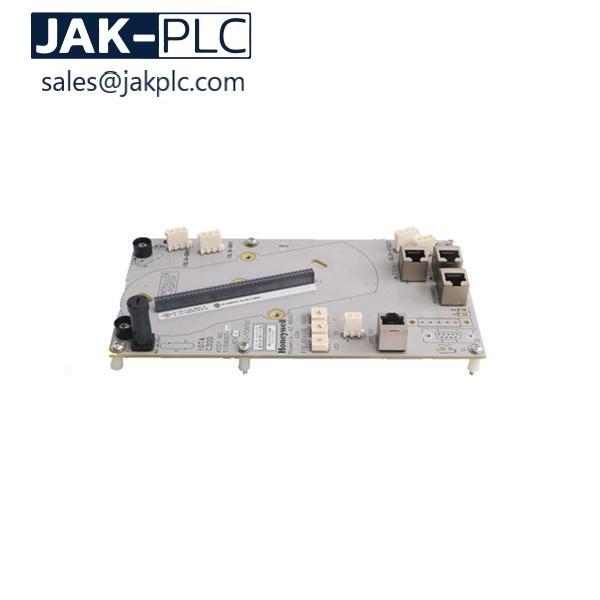

Honeywell CC-PDIL01 Module

Honeywell CC-PDIL01 In Stock One Year Warranty

Introduction

The Device Index, in conjunction with the Base IP Address (entered in the SystemPreferences dialog of Control Builder), gives the controller a unique IP address on theFTE network where the controller resides. The Device Index is manually set by usingthe three rotary switches located on the controller IOTA. The Device Index is alsoentered on the controller block configuration form (DEVICEIDX parameter).Upon power up of the controller, the Device Index is provided to the BOOTP Server onthe associated FTE community. The BOOTP Server issues an IP address for thecontroller, based on the Device Index of the controller and the Base IP Addressconfigured for the FTE community. The controller's IP address identifies the controlleras an FTE node on the network.Device Index rulesThe Device Index must be set to a value between 1 and 255 and must be unique for anode within a given subnet, (FTE Community). Redundant controller pairs are assignedDevice Indexes based on their redundancy roles. The primary controller is assigned anodd Device Index number and the secondary is assigned the next higher even number(primary Device Index + 1). A non-redundant controller must always be assigned an oddDevice Index number, (otherwise it will be flagged as an error). Note that these rules areenforced by the Control Builder application during device configuration.During normal operation the display on the controller faceplate shows the Device Indexas part of the rotating display of information.

We focus on Honeywell DCS System Experion PKS ( C200 , C300 )  FSC

1. Control Processor, TK-PRR021, CC-PCNT01 51405046-175, TC-PRS021, TK-PRS021, CC-PFB801, CC-PFB401, 8C-PAIH51, 8C-PAOHA1

2. Fault Tolerant Ethernet Bridge ( FTEB ), TK-FTEB01 51309512-175, FC-TPSU-2430, FC-TSGAS-1624, FC-DCOM-232/485, FC-TSAI-1620M, FC-SAI-1620M, FC-SDI-1624

3. Controlnet Interface ( CNI ) , FC-TPSU-2430, FC-TSGAS-1624, FC-DCOM-232/485, FC-TSAI-1620M, FC-SAI-1620M, FC-SDI-1624

4. Redundancy Module ( RM ) TC-PRR021  51309288-225, TK-PRS021 51404305-375, TK-PRR021 51309288-275, TC-IXR061 96978373

5. IOLIM ( I/O Link Interface Module ) TC-IAH16I, TC-OAV081, TC-IXR061, TC-ODD321, TC-IAH161, TC-IXL061,  TK-PRR021

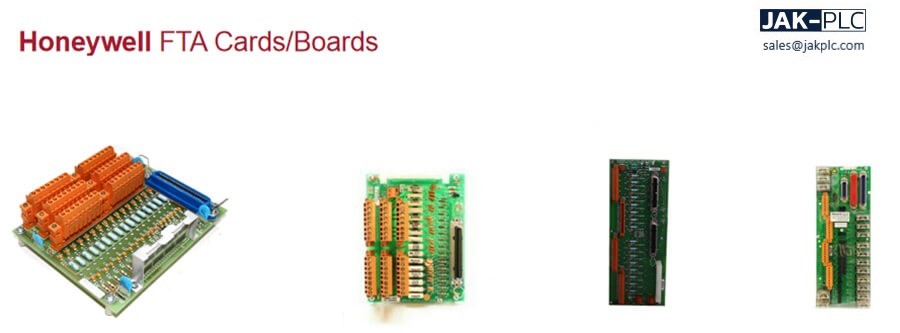

6. PM I/O Cards, TK-IOLI01 51403427-275, CC-TAIX01 51308363-175, CC-TAOX01 51308351-175, 8C-TDODA1 51307149-175, TK- IOLI01   51403427-275

7. FTA Cards, MC-TAIH02  51304453-150 UCN, MC-TDOY22 51204162-175 UCN, MC-TDIY22  51204160-175 UCN, MC-TAOY22 51204172-175 UNC, MC-PAIH03 51304754-150

8. FSC Module, 10024/H/F, 10020/1/2, 10018/E/1, 10101/2/1, 10004/H/F, 10105/2/1, 10201/2/1, 10001/R/1, 10006/2/1

9. UCN BOARD, 80363969-150  ( MC-PAOY22 ), 51309276-150, 51309355-001, 51304516-250, 51304754-150, MC-PAIH03, 51305430-100
