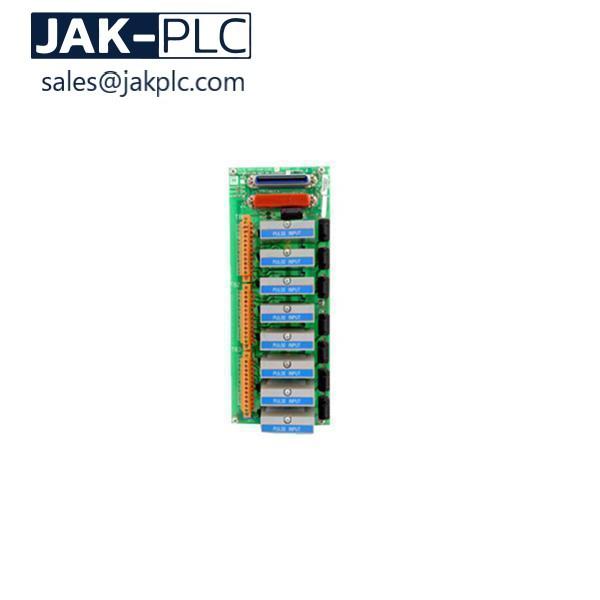

Honeywell MC-TPIX12 51304084-175 Pulse Input with compression terminals
brand:
Honeywellitem no:
Honeywell MC-TPIX12 51304084-175payment:
TT Or Western Unionproduct origin:
USAgood stock:
20.0shipping port:
Dammamlead time:
1-3 Dayscondition:
Original New And In Stockwarranty:
1 Yearcertificate:
Co,Cooproduct type:
Honeywell Pulse Input Module 51304084-175system:
Honeywell TPS Process Manager I/OHoneywell MC-TPIX12 51304084-175 Pulse Input I/O Module
Description
Honeywell I/O Processors, along with Field Termination Assemblies (FTAs), perform input and output scanning and processing on all field PM/APM/HPM/EHPM I/O.
Honeywell Field Termination Assemblies FTA Models
| Uncoated Model Number | Coated Model Number | Description |
| MU-TAIH02 | MC-TAIH02 | High Level Analog Input/STI FTA (16 Inputs) |
| MU-TAIH12 | MC-TAIH12 | High Level Analog Input/STI FTA for Redundancy (16 Inputs) ** |
| MU-TAIH03 | MC-TAIH03 | High Level Analog Input FTA (16 Inputs) (CE Mark) |
| MU-TAIH13 | MC-TAIH13 | High Level Analog Input FTA for Redundancy (16 Inputs) (CE Mark) ** |
| MU-TSTX03 | MC-TSTX03 | Smart Transmitter Interface FTA (16 Inputs) (CE Mark) |
| MU-TSTX13 | MC-TSTX13 | Smart Transmitter Interface FTA for Redundancy (16 Inputs) (CE Mark) ** |
| MU-TAIH22 | MC-TAIH22 | Enhanced Power High Level /STI Analog Input FTA (16 Inputs) ** |
| MU-TAIH23 | MC-TAIH23 | Enhanced Power High Level Analog Input FTA (16 Inputs) (CE Mark)** |
| MU-TAIL02 | MC-TAIL02 | Low Level Analog Input FTA (8 Inputs) |
| MU-TAIL03 | MC-TAIL03 | Low Level Analog Input FTA (8 Inputs) (CE Mark) |
| MU-TAMR04 | MC-TAMR03 | Low Level Analog Input Multiplexer RTD FTA (16 Inputs) |
| MU-TAMT04 | MC-TAMT03 | Low Level Analog Input Multiplexer TC FTA (16 Inputs) |
| MU-TAMT14 | MC-TAMT13 | Low Level Analog Input Multiplexer TC FTA with Remote CJR (16 Inputs) |
| MU-GRPA01 | MC-GRPA01 | RHMUX GI/IS Power Adapter |
| MU-TRPA01 | MC-TRPA01 | RHMUX GI/NI Power Adapter |
| MU-CMSC03 | RHMUX NEMA 4 Enclosure (Painted Carbon Steel) | |
| MU-CMSS03 | RHMUX NEMA 4X Enclosure (Stainless Steel) | |
| MU-TLPA02 | MC-TLPA02 | LLMUX, SDI, SI Power Adapter |
| MU-TPIX12 | MC-TPIX12 | Pulse Input FTA (8 Inputs) |
| MU-TAOX02 | MC-TAOX02 | Analog Output FTA (8 Outputs) |
| MU-TAOX12 | MC-TAOX12 | Analog Output FTA for Redundancy (8 Outputs) ** |
| MU-TAOY22 | MC-TAOY22 | Analog Output 16 FTA (16 Outputs), w/StbyMan (use ONLY w/ MU-PAOY22)** |
| MU-THAO11 | MC-THAO11 | Analog Output 16 FTA (16 Outputs), w/StbyMan and HART® connector (use ONLY w/ MU-PAOY22)** |
| MU-GHAO11 | MC-GHAO11 | GI/IS Analog Output 16 FTA (16 Outputs), w/o StbyMan, w/HART® connector (use ONLY w/ MU-PAOY22)** |
| MU-TDIA12 | MC-TDIA12 | Digital Input Isolated 120 Vac FTA (32 Inputs) |
| MU-TDIA22 | MC-TDIA22 | Digital Input Isolated 240 Vac FTA (32 Inputs) |
| MU-TDID12 | MC-TDID12 | Digital Input 24 Vdc FTA (32 Inputs) |
| MU-TDIY22 | MC-TDIY22 | Digital Input 24 Vdc FTA (32 Inputs) (use ONLY w/ MU-PDIY22)** |
| MU-TDOA13 | MC-TDOA13 | Digital Output 120/240 Vac Solid-State FTA (16 Outputs) |
| MU-TDOD13 | MC-TDOD13 | Digital Output 3-30 Vdc Solid-State FTA (16 Outputs) |
| MU-TDOD14 | MC-TDOD14 | Digital Output 3-30 Vdc Solid-State FTA (16 Outputs) (CE Mark) |
| MU-TDOD23 | MC-TDOD23 | Digital Output 31-200 Vdc Solid-State (16 Outputs) |
| MU-TDON12 | MC-TDON12 | Digital Output 24 Vdc, 100 ma Nonisolated FTA (16 Outputs) |
| MU-TDOR12 | MC-TDOR12 | Digital Output 120 Vac/125 Vdc Relay FTA (16 Outputs) |
| MU-TDOR22 | MC-TDOR22 | Digital Output 240 Vac/125 Vdc Relay FTA (16 Outputs) |
| MU-TDOY22 | MC-TDOY22 | Digital Output 24 Vdc FTA (32 Outputs) (use ONLY w/ MU-PDOY22)** |
| MU-TDOY23 | MC-TDOY23 | Digital Output Relay FTA (16 Outputs) (use two w/ MU-PDOY22)** |
FTA Spare Parts
| FTA Model Number | CE Compliant Part Number | Non CE Compliant Part Number | Description |
| MC-TPIX12 | 51304084-175 | 51304084-150 | Pulse Input with compression terminals |
| MC-TDOY23 | 80366189-175 | 80366189-150 | 240 Vac/125 Vdc Relay Digital Output with comp term |
| MC-TDOY63 | 80366185-175 | 80366185-150 | 240 Vac/125 Vdc Relay Digital Output with screw term |
| MC-TDPR02 | 51304425-175 | 51304425-150 | Digital Input Power Distribution Assembly |
| MC-TLPA02 | 51309204-175 | 51304467-150 | Power Adapter |
| MC-TPIX52 | 51304084-275 | 51304084-250 | Pulse Input with screw terminals |
| MC-TSDM02 | N/A | 51303932-252 | Serial Device Interface—Manual/Auto Station |
| MC-TSDT02 | N/A | 51303932-251 | Serial Device Interface—Toledo Weigh Cell |
| MC-TSDU02 | N/A | 51303932-253 | Serial Device Interface—UDC 6000 Modbus |
| MC-TSIA12 | 51303932-478 | 51303932-453 | Serial Interface—Allen-Bradley |
| MC-TSIM12 | 51303932-476 | 51303932-451 | Serial Interface—Modbus EIA-232 |
