Honeywell MU-TAIH02 51304453-100 High Level Analog Input/STI FTA Module

Honeywell MU-TAIH02 51304453-100 High Level Analog Input/STI FTA (16 Inputs)

brand:
Honeywell
item no:
Honeywell MU-TAIH02 51304453-100
payment:
TT Or Western Union
product origin:
USA
good stock:
30.0
shipping port:
Dammam
lead time:
1-3 Days
condition:
Original New And In Stock
warranty:
1 Year
certificate:
Co,Coo
product type:
Honeywell MU-TAIH02 51304453-100 FTA Card
system:
Honeywell TPS Process Manager I/O

Product Details
FAQs

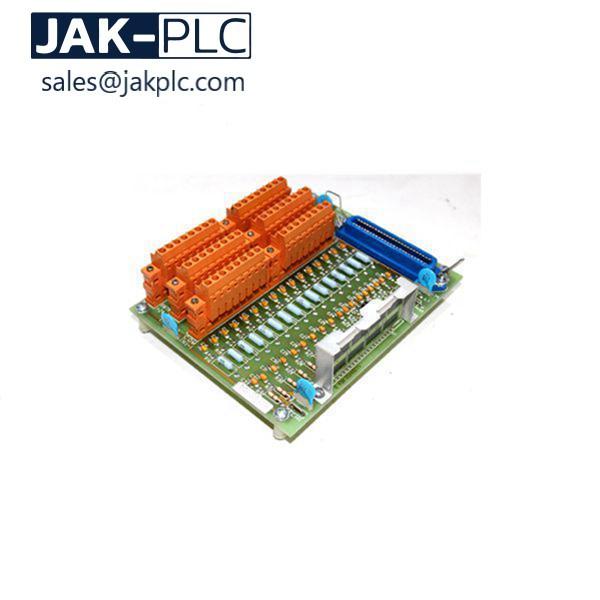

Honeywell MU-TAIH02 51304453-100 Analog Input/STI FTA Module In Stock

Description

All connections to and from the process are made to Field Termination Assemblies (FTA). Compression-type termination blocks (that can accept wire sizes as large as 14 AWG or ~1.6 mm) are available for all FTAs. Screw-type termination's can also be provided for most FTAs as shown in Table 1 in the “Specifications” section. The FTAs are connected to the I/O processors by cables that can be up to 50 meters in length. Three sizes of FTAs are used as shown in this table. Twenty-four Vdc transmitter and digital inputs sense power connections are provided through the standard FTA cable

Honeywell Field Termination Assemblies FTA Modules

Uncoated Model Number	Coated Model Number	Description
MU-TAIH02	MC-TAIH02	High Level Analog Input/STI FTA (16 Inputs)
MU-TPIX12	MC-TPIX12	Pulse Input FTA (8 Inputs)
MU-TAIH22	MC-TAIH22	Enhanced Power High Level /STI Analog Input FTA (16 Inputs) **
MU-TAIL02	MC-TAIL02	Low Level Analog Input FTA (8 Inputs)
MU-TAOX12	MC-TAOX12	Analog Output FTA for Redundancy (8 Outputs) **
MU-TAIH12	MC-TAIH12	High Level Analog Input/STI FTA for Redundancy (16 Inputs) **
MU-TDOR22	MC-TDOR22	Digital Output 240 Vac/125 Vdc Relay FTA (16 Outputs)
MU-TDID12	MC-TDID12	Digital Input 24 Vdc FTA (32 Inputs)
MU-TAOY22	MC-TAOY22	Analog Output 16 FTA (16 Outputs), w/StbyMan (use ONLY w/ MU-PAOY22)**
MU-TLPA02	MC-TLPA02	LLMUX, SDI, SI Power Adapter
MU-TDOD23	MC-TDOD23	Digital Output 31-200 Vdc Solid-State (16 Outputs)
MU-TDON12	MC-TDON12	Digital Output 24 Vdc, 100 ma Nonisolated FTA (16 Outputs)
MU-TAMT04	MC-TAMT03	Low Level Analog Input Multiplexer TC FTA (16 Inputs)
MU-TAMT14	MC-TAMT13	Low Level Analog Input Multiplexer TC FTA with Remote CJR (16 Inputs)
MU-GRPA01	MC-GRPA01	RHMUX GI/IS Power Adapter
MU-TRPA01	MC-TRPA01	RHMUX GI/NI Power Adapter
MU-TAOX02	MC-TAOX02	Analog Output FTA (8 Outputs)
MU-THAO11	MC-THAO11	Analog Output 16 FTA (16 Outputs), w/StbyMan and HART® connector (use ONLY w/ MU-PAOY22)**
MU-GHAO11	MC-GHAO11	GI/IS Analog Output 16 FTA (16 Outputs), w/o StbyMan, w/HART® connector (use ONLY w/ MU-PAOY22)**
MU-TDIA12	MC-TDIA12	Digital Input Isolated 120 Vac FTA (32 Inputs)
MU-TDIA22	MC-TDIA22	Digital Input Isolated 240 Vac FTA (32 Inputs)
MU-TDOR12	MC-TDOR12	Digital Output 120 Vac/125 Vdc Relay FTA (16 Outputs)
MU-TDOY22	MC-TDOY22	Digital Output 24 Vdc FTA (32 Outputs) (use ONLY w/ MU-PDOY22)**
MU-TDIY22	MC-TDIY22	Digital Input 24 Vdc FTA (32 Inputs) (use ONLY w/ MU-PDIY22)**
MU-TDOA13	MC-TDOA13	Digital Output 120/240 Vac Solid-State FTA (16 Outputs)
MU-TDOD13	MC-TDOD13	Digital Output 3-30 Vdc Solid-State FTA (16 Outputs)
MU-TDOD14	MC-TDOD14	Digital Output 3-30 Vdc Solid-State FTA (16 Outputs) (CE Mark)
MU-TAMR04	MC-TAMR03	Low Level Analog Input Multiplexer RTD FTA (16 Inputs)
MU-TAIH03	MC-TAIH03	High Level Analog Input FTA (16 Inputs) (CE Mark)
MU-TAIH13	MC-TAIH13	High Level Analog Input FTA for Redundancy (16 Inputs) (CE Mark) **
MU-TSTX03	MC-TSTX03	Smart Transmitter Interface FTA (16 Inputs) (CE Mark)
MU-TSTX13	MC-TSTX13	Smart Transmitter Interface FTA for Redundancy (16 Inputs) (CE Mark) **
MU-TAIH23	MC-TAIH23	Enhanced Power High Level Analog Input FTA (16 Inputs) (CE Mark)**
MU-TAIL03	MC-TAIL03	Low Level Analog Input FTA (8 Inputs) (CE Mark)
MU-TDOY23	MC-TDOY23	Digital Output Relay FTA (16 Outputs) (use two w/ MU-PDOY22)**
