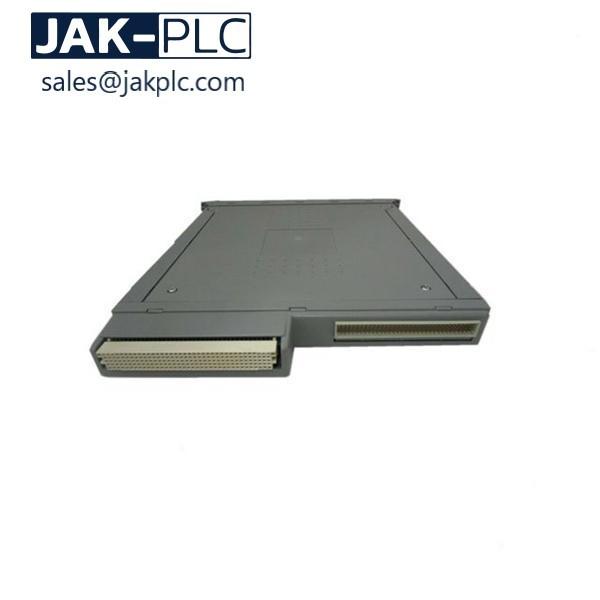

ICS Triplex T8380 Module

ICS Triplex T8380 Chassis skyp guoerhua Kit

Product Overview

The Trusted® Controller Chassis can be either swing frame or fixed frame mounted and houses theTrusted Triple Modular Redundant (TMR) Processor and Trusted Input/Output (I/O) and / orInterface Modules.The Chassis may be panel (rear) mounted by the addition of a Panel Mounting Kit, (T8380) whichcomprises a pair of brackets with rear facing ears.The Inter-Module Bus (IMB) backplane is part of the Trusted Controller Chassis and provideselectrical interconnection and other services for the modules.

The Trusted® Power System is a high density flexible power supply designed to convert main linevoltages of either 110 Vac or 240 Vac. Outputs are either 24 Vdc for Trusted product or 28 Vdcadjustable field power.The Trusted Power System consists of a 1U Power Shelf with mechanical support, containing up tothree 750 W Power Packs. The Power Packs load share in configurations using one or more PowerShelves. Each Power Pack has an individual supply connection via a mechanically retained IEC 60320type connector. Each Power Shelf can supply 2250 W of power or 1500 W with n+1 redundancyfrom a single source. Multiple units can be connected for further capacity or redundancyrequirements.Diagnostic information of Power Pack status is provided via the Power Port, which connects to therear of the Power Shelf. This device monitors input and output conditions and reports out of rangefaults and over-temperature/fan failure using relay contacts. The Power Port also allows connectionof the optional rack mounted Power Controller for live configuration, of output voltage and current,monitoring up to 12 Power Packs in 4 Power Shelves.

Packing and Delivery

1)100% full New! - Original Factory Seal !

2)Warranty: 12 months!

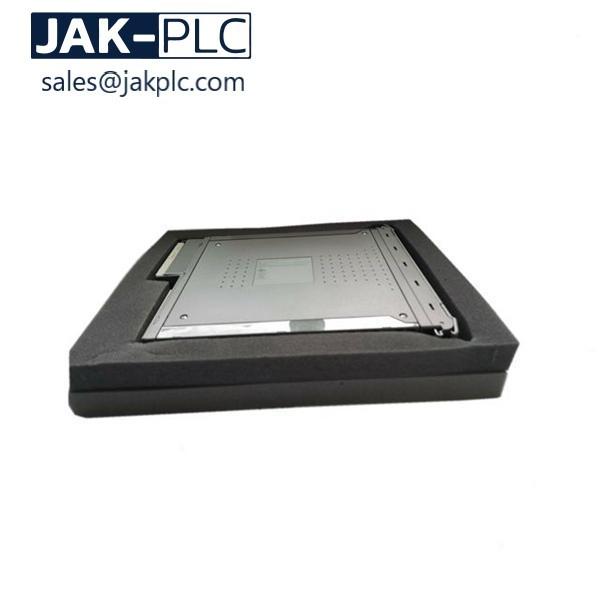

3)Package: Original packing with cartons.

4)Delivery time: Shipped in 3 days after payment

5) All the goods will be tested before shipment.

Best Quality Assurance
