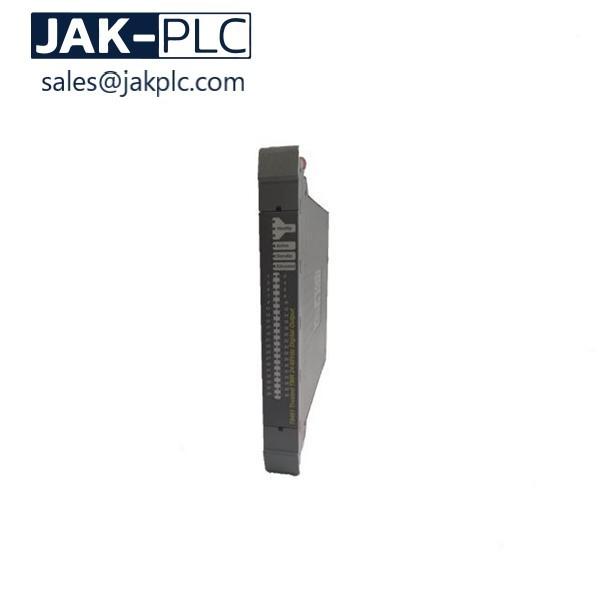

ICS Triplex T8471 Digital Output Module

Triplex T8471 120V DC Digital Output Module New

Product Overview

The Trusted® TMR 24 Vdc Digital Output Module interfaces to 40 field devices. Triplicateddiagnostic tests are performed throughout the Module including measurements for current, andvoltage on each portion of the voted output channel. Tests are also performed for stuck on andstuck off failures. Fault tolerance is achieved through a Triple Modular Redundant (TMR)architecture within the Module for each of the 40 output channels.Automatic line monitoring of the field device is provided. This feature enables the Module to detectboth open and short circuit failures in field wiring and load devices.The Module provides on-board Sequence of Events (SOE) reporting with a resolution of 1 ms. Anoutput change of state triggers an SOE entry. Output states are automatically determined byvoltage and current measurements on-board the Module.This Module is not approved for direct connection to hazardous areas and should be used inconjunction with Intrinsic Safety Barrier devices.

Features:

-40 Triple Modular Redundant (TMR) output points per Module.

-Comprehensive, automatic diagnostics and self-test.

-Automatic line monitoring per point to detect open circuit and short circuit field wiring andload faults.

- 2500 V impulse withstand opto/galvanic isolation barrier.

- Automatic over-current protection (per channel), no external fuses required.

- On-board Sequence of Events (SOE) reporting with 1 ms resolution.

-Module can be hot-replaced on-line using dedicated Companion (adjacent) Slot or SmartSlot(one spare slot for many Modules) configurations.
