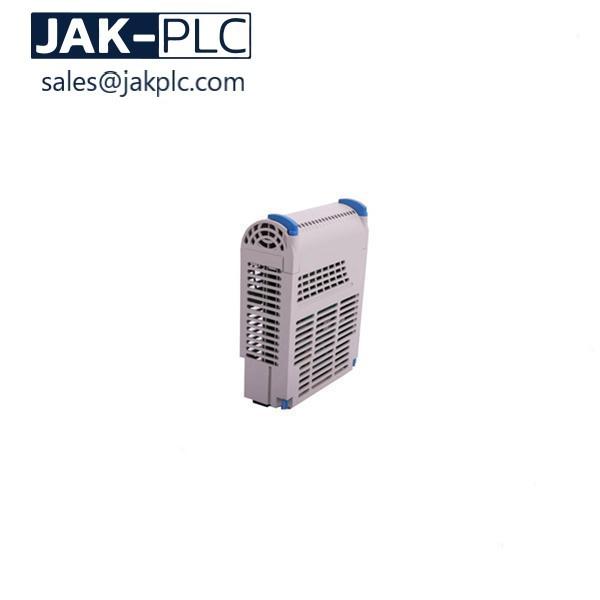

New And Original OVATION 5X00106G01 I/O Reference Manual (R3-1150) - Powergenics

Brand New Ovation 5X00106G01 Module One Year Warranty

Description

Ovation controllers and I/O modules are all DIN railmountable, providing the flexibility to match controllerlayouts with process requirements for variouslocations, environments and space availability. Thenormal configuration is to mount DIN rail items onplates which can then be installed in existing or newcabinet enclosures. Top and bottom entry for I/Ocables is available to meet required specifications.A variety of controller and I/O cabinet configurationsare available. The basic controller cabinet houses achassis for single or redundant controllers and two I/Obranches on the front of the plate. Mounted on the rearof the plate is a redundant power supply, powerdistribution module and two additional I/O branches fora total of 32 I/O modules since each I/O branch canhold up to eight I/O modules.Expansion cabinets house up to an additional 32 I/Omodules in four branches and a transition panel forconnection to the controllers. It can also provideadditional space for mounting redundant powersupplies (when required), and a power distributionmodule.Ovation’s standard cabinet structure is front and rearaccess, but can be provided with front access only.Other custom or OEM cabinet enclosures areoptionally available to accommodate specificrequirements for plate sizes, cabinet sizes,construction materials, environmental ratings, cabinetinterior and exterior accessories, termination optionsand marshaling cabinets.

Ovation Specifications

Westinghouse Emerson 5X00226G02 Ovation I/O Interface Module
Westinghouse Emerson 3A99266G01 Ovation Local I/O Transition Panel
Westinghouse Emerson 1C31222G01 Ovation Relay Output Panel
Westinghouse Emerson 1C31179G02 Ovation Remote I/O Module
Westinghouse 3A99190G01 Remote I/O Interface Board
Westinghouse 1C31150G01 Ovation Pulse Accumulator
Westinghouse 1C31194G03 Ovation Control Module
Westinghouse 1C31192G01 Speed Detector Process Control PLC Ovation Emerson
Westinghouse 3A99132G02 Power Supply Board
