Products
Home Products

Allen Bradley PLC

Rockwell Allen Bradley 1746-IB32 Digital I/O Module

Rockwell Allen Bradley 1746-IB32 Digital I/O Module

Rockwell SLC 500 1746 IB32 Discrete Input and Output Modules

  • brand:

    Allen Bradley
  • item no:

    Allen Bradley 1746-IB32
  • payment:

    TT Or Western Union
  • shipping port:

    Dammam
  • lead time:

    1-3 Working Days
  • condition:

    Original New
  • warranty:

    12 Months
  • description:

    Allen-Bradley 1746-IB32 Sinking DC Input Modules
  • product type:

    Digital I/O Module
  • system:

    SLC 500 I/O Modules

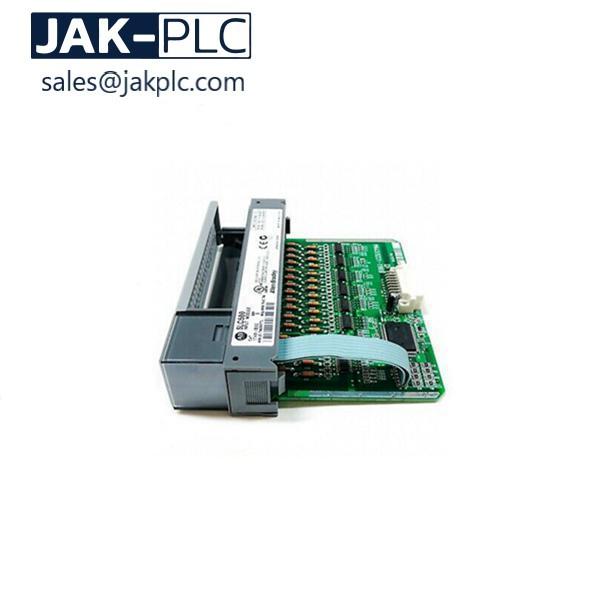

Allen Bradley 1746-IB32 Digital I/O Module


Overview:

Allen-Bradley 1746-IB32 Analog I/O Modules is one of the 1746 Digital I/O modules

Digital I/O modules are available with 4, 8, 16, or 32 channels and in a wide variety of I/O voltages (including AC, DC, and TTL). Combination modules with 2 inputs/2 outputs, 4 inputs/4 outputs, and 6 inputs/6 outputs are also available.
32-channel I/O modules are equipped with a 40-pin, MIL-C-83503 type header and a removable wiring connector (1746-N3). The connector can be assembled with the wire type and length of your choice.
Output modules are available with solid-state AC, solid-state DC, and relay contact type outputs. High current solid-state output modules, catalog numbers 1746-OBP16, 1746-OVP16, and 1746-OAP12, have fused commons with a blown fuse LED indication.  The 1746-OB16E, 1746-OB6EI, and 1746-OB32E modules provide electronic protection from short circuit and overload conditions.


A-B 1746-IB32 Digital Input Modules Specificiation:

Catalog NumberVoltage CategoryI/O PointsDescriptionFor Detailed Specifications, See
1746-IB3224V DC32Current Sinking DC Input ModuleSinking DC Input Modules
1746-IB1624V DC16Current Sinking DC Input ModuleSinking DC Input Modules
1746-IB824V DC8Current Sinking DC Input ModuleSinking DC Input Modules
1746-ITB1624V DC16Fast Response DC Sinking Input ModuleSinking DC Input Modules
1746-IC1648V DC16Current Sinking DC Input ModuleSinking DC Input Modules
1746-IH16125V DC16Current Sinking DC Input ModuleSinking DC Input Modules
1746-IV824V DC8Current Sourcing DC Input ModuleSourcing DC Input Modules
1746-IV1624V DC16Current Sourcing DC Input ModuleSourcing DC Input Modules
1746-IV3224V DC32Current Sourcing DC Input ModuleSourcing DC Input Modules
1746-ITV1624V DC16Fast Response DC Sourcing Input ModuleSourcing DC Input Modules
1746-IG165V DC16Current Sourcing TTL Input ModuleSourcing DC Input Modules
1746-OB6EI24V DC6Electronically Protected Isolated Sourcing DC Output ModuleSourcing DC Output Modules
1746-OB824V DC8Current Sourcing DC Output ModuleSourcing DC Output Modules

allen bradley dcs


Related PLC modules:

Allen Bradley 1746-IB16 Digital Input Modules
Allen Bradley 1746-IB32 Digital I/O Module
Allen Bradley 1746-OW16 Relay Output Modules
Allen Bradley 1746-OW8 Relay Output Modules
Allen Bradley 1746-OB16 Sourcing DC Output Modules
Allen Bradley 1746-A7  7-Slot SLC 500 Chassis
Allen Bradley 1746-A13 13-Slot SLC 500 Chassis
Allen Bradley 1747-L531 Processors SLC 500 System
Allen Bradley 1747-L532 Processors SLC 500 System
Allen Bradley 1747-L541 Processors SLC 500 System
Allen Bradley 1746-NI16I 1746 Analog I/O Modules
Allen Bradley 1746-NI4 1746 Analog I/O Modules
