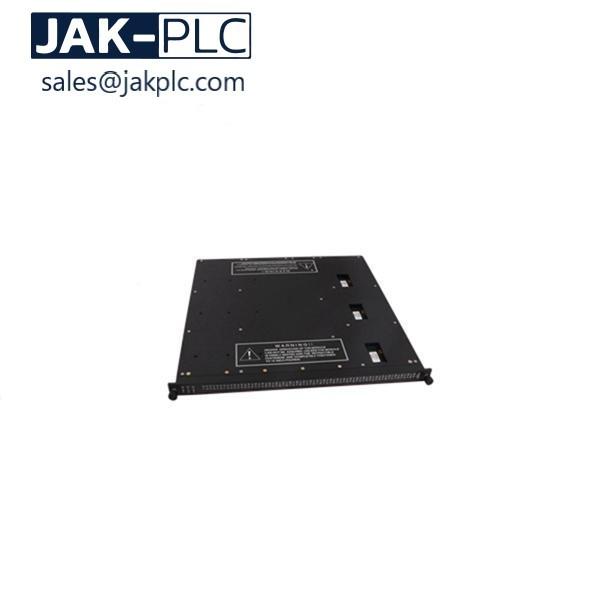

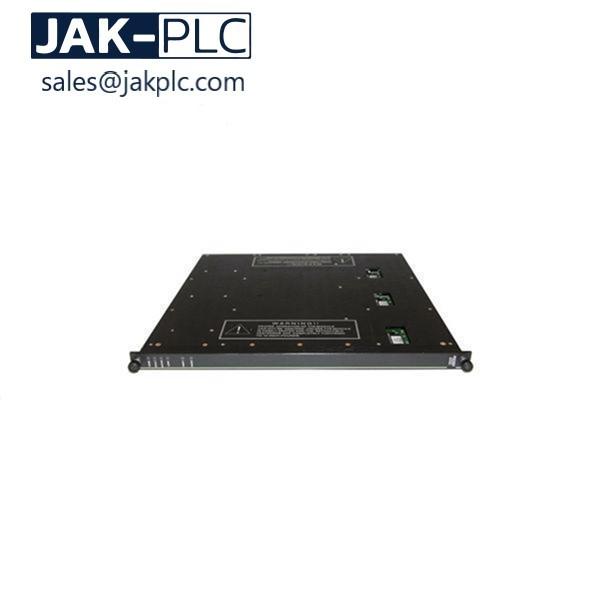

Triconex 3604E Digital Output Module

Triconex 3604E Digital Output Modules 24VDC 16 Point TMR

brand:
Invensys Triconex
item no:
Triconex 3604E
payment:
T/T, Western Union, Credit Card
product origin:
USA
shipping port:
Dammam
lead time:
1-3 Days
condition:
Brand New And Original
warranty:
1 Year
certificate:
COO
product type:
I/O Module
system:
Tricon

Product Details
FAQs

24 Vdc Opto-Isolated Triconex Non-Commoned TMR 3604E

Digital OutputModules

There are four basic types of digitaloutput modules: dual, supervised, DCvoltage and AC voltage. The following paragraphs describe digital outputmodules in general, byspecifics for the four types.

Each type of digital output moduleexecutes a particular Output VoterDiagnostic (OVD) for every point.Loop-back on the module allows eachmicroprocessor to read the output valuefor the point to determine whether alatent fault exists within the outputcircuit.

Triconex 3604E

Product Specifications

Brand/Manufacturer	Invensys
Part Number	3604E
Alternate Part Number	7400116-020
Description	Digital Output Module
Dimensions	49x45.3x6.8cm
Weight	3.65 kg

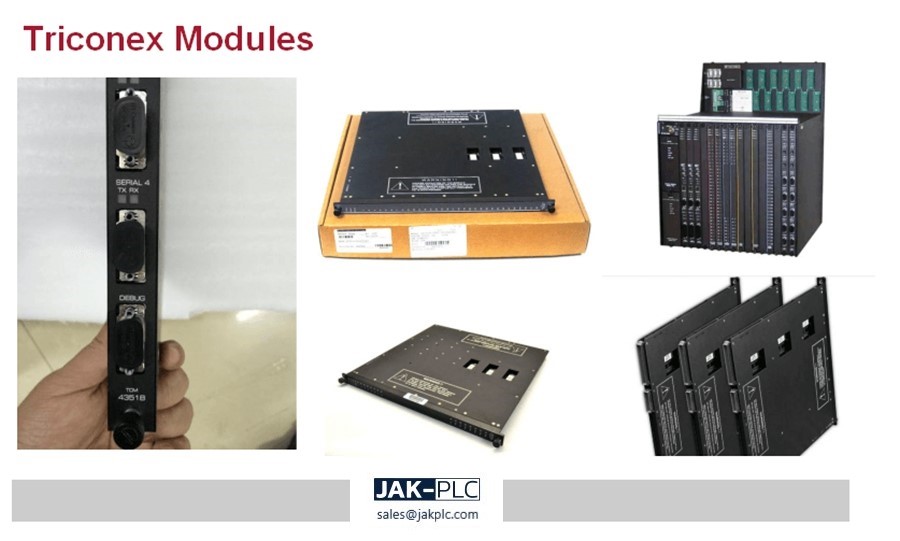

Triconex Module Types

Digital Input
3501E EDI Module, 115V AC/DC
3502E EDI Module, 48V AC/DC
3503E EDI Module, 24V AC/DC
3504E HDDI Module, 24/48 VDC (24V)
3505E EDI Module, 24 VDC, Low Threshold

Digital Output
3601E EDO Module, 115 VAC
3603E EDO Module, 120 VDC (2)
3603T EDO Module, 120 VDC (3603E replacement during Surge test)
3604E EDO Module, 24 VDC
3607E EDO Module, 48 VDC
3611E SDO Module, 115 VAC (3)
3623 SDO Module, 120 VDC
3624 SDO Module, 24 VDC

Pulse Input
3510 Pulse Input Module

Thermocouple
3706A NITC Input Module
3708E ITC Thermocouple Input Module

Relay Output
3636R ERO Module, N.O., Simplex

Miscellaneous
8105 Blank Module Panel
8107 Seismic Balance Module
