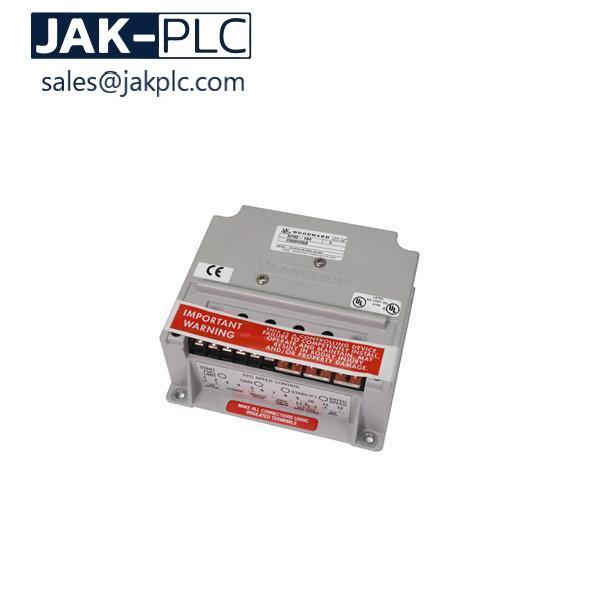

Woodward 8440-1831 Module

Woodward 8440-1831 Module In Stock

Description

A Smart I/O module has its own on-board microcontrollers. The modulesdescribed in this chapter are Smart I/O modules.During initialization of a smart module, the module's microcontroller turns theLED off after power-on self-tests have passed and the CPU has initialized themodule. The LED is illuminated to indicate an I/O fault.The CPU also tells this module in which rate group each channel is to run, aswell as any special information (such as the type of thermocouple in the case of athermocouple module). At run time, the CPU then periodically broadcasts a "key"to all I/O cards, telling them which rate groups are to be updated at that time.Through this initialization/key broadcast system, each I/O module handles itsown rate-group scheduling with minimal CPU intervention.These smart I/O modules also have on-card on-line fault detection and automaticcalibration/compensation. Each input channel has its own precision voltagereference. Once per minute, while not reading inputs, the on-boardmicrocontroller reads this reference. The microcontroller then uses this data readfrom the voltage reference for both fault detection and automatic temperaturecompensation/calibration.Limits have been set for the expected readings when the on-boardmicrocontroller reads each voltage reference. If the reading obtained is outsidethese limits, the system determines that the input channel, A/D converter, or thechannel's precision-voltage reference is not functioning properly. If this happens,the microcontroller flags that channel as having a fault condition. The CPU willthen take whatever action the application engineer has provided for in theapplication program.A smart output module monitors the output voltage or current of each channeland alerts the system if a fault is detected.Each I/O module has a fuse on it. This fuse is visible and can be changedthrough a cutout in the plastic cover of the module. If the fuse is blown, replace itwith a fuse of the same type and size.

FAQ:
1.Is the part new?
   Yes, 100% Original brand new
2.How is the package?
   Original factory seal packed
3.What is the lead time?
   In stock: 1-3 working days
4.What is the MOQ:
   1pcs
5.What is the payment term:
   TT and Western Union, other negotiable
6.Where the item ship from?
   Dammam
7.What is the warranty time?
   One year

8. How to delivery the PLC Parts?
   Kindly tell us your address,we check best cost for you
   Or you can use your own courier account or agent, DHL, FEDEX, UPS etc are available.

Packaging & Shipping
1.All the goods will be tested before shipment.
2. Packing in professional anti-static bag.
3. We can ship to you by DHL/TNT/UPS/EMS/Fedex... Pls contact us directly and we will ship as your requirement.
