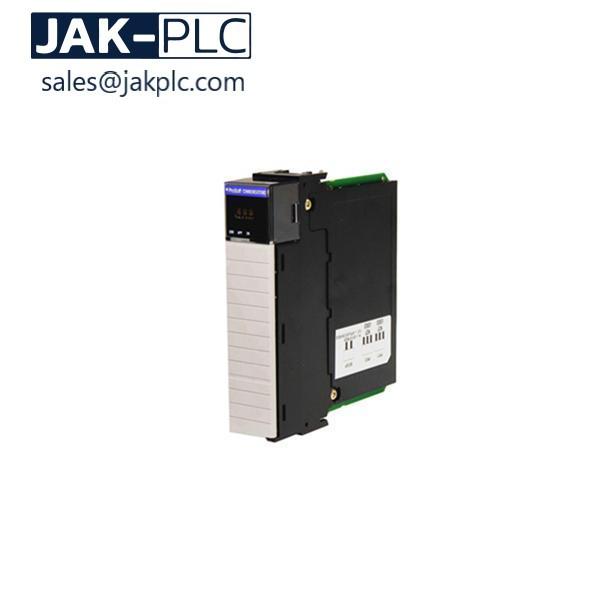

ALLEN BRADLEY 1769-OV16 OUTPUT MODULE

ALLEN BRADLEY 1769-OV16 OUTPUT MODULE COMPACTLOGIX

Description

The Allen-Bradley 1769-OV16 is a CompactLogix solid-state sink output module. It comes with 16 outputs in a group and a current sinking output that comes with a removable terminal block which has a finger-safe cover for connections to the I/O sensors and actuators. This terminal block is located behind the door in front of the module. Sixteen-point communication cables are compatible with this module, particularly a copper-90 degree 22-14 AWG solid or 22-16 AWG stranded wire. The 1769-OV16 module can be from Series A or B and it is configured using the RSLogix5000 software. When users need to wire the I/O to the module, they can do it by routing it from below the module to the I/O terminals. The 1769-OV16 measures 4.65 x 1.38 x 3.43 inches and it weighs approximately 0.61 pounds.

This 24 Volts DC sink module has an operating voltage range of 20.4 to 26.4 Volts DC. It has a maximum off-state leakage current of 1 mA at 26.4 Volts DC, a minimum on-state current of 1 mA and a maximum on-state voltage drop of 1 Volts DC at 1 Amps. Its drawn current is 200 mA at 5.1 Volts and this module also has a surge current of 2 Amps for 10 milliseconds which is repeatable every 2 seconds. The maximum current per point is dependent on temperature. It is 0.5 Amps at 60 degrees Celsius and 1 Amp at 30 degrees Celsius. It is the same with the current per module as the maximum is 4 Amps at 60 degrees Celsius and 8 Amps at 30 degrees Celsius. The 1769-OV16’s maximum heat dissipation is 2.06 W while its non-condensing relative humidity is 5 to 95%. It also comes with a 0.1-millisecond output delay for the ON state and a 1-millisecond output delay for the OFF state. Its operating vibration is 5 g at 10 to 500 Hertz and 2 g for relay operation. The module also has a 30g operating shock, 7.5g relay operating shock, and a 40g non-operating shock when it is mounted on a panel. When mounted on a DIN rail, its operating shock is 20g and the non-operating shock is 30 g.
