Allen Bradley 1769-PA4 Compact I/O Power Supply

Allen Bradley 1769-PA4 Power Supply Module Ser A

Description

The Allen-Bradley 1769-PA4 is a CompactLogix I/O power supply. It can provide 120 to 240 Volts of AC power and 24 Volts of DC power to the CompactLogix 1769-L3x processors, controllers, and the I/O modules connected to it. Up to 8 modules can connect to each side of the 1769-PA4 for a maximum of 16 modules for one power supply. This power supply provides 4A of current at 5 Volts DC or 2A at 24 Volts DC. This module measures 2.76 x 3.43 x 4.65 inches and weighs approximately 630 g (1.39 lb). This power supply supports DIN rail or panel mounting. It has an open-style enclosure with integrated fuse that is replaceable with part numbers Littelfuse 02183.15MXP or the Wickman 19195-3 fuses.

The 1769-PA4 has components that include a bus lever with a locking function, LED status indicator, a power supply door with an identification label, both movable and stationary bus connectors (with male and female pins), a nameplate label, upper and lower tongue-and-groove slots, upper and lower DIN rail latches, a terminal block with finger-safe cover, and a housing cover for the replaceable fuse.

This power supply has a selectable input voltage range of 85 to 265 Volts and 170-265 VAC along an input frequency range of 47 to 63 Hertz. Its power consumption is around 200 VA at 120 Volts AC and 240 VA at 240 Volts AC and its maximum inrush current is 25 Amps at 132 Volts AC. The 1769-PA4 has a current capacity of 4 Amps at 5 Volts DC and one of 2 Amps at 24 Volts DC, a nominal input voltage of 120 to 220 Volts AC, a Wattage of 18 Watts, and an output voltage of 24 Volts DC. Its isolation voltage is continuous at 265 Volts from AC power input to the system.

The Allen-Bradley product with part number 1769-PA4 is a CompactLogix component that functions as an I/O Power supply. This CompactLogix I/O power supplies backplane power which is distributed to the 1769 Compact I/O modules. This power supplies is capable of powering modules from both sides of the unit. Compact I/O modules may be installed on each side of the I/O expansion power supply where up to Eight (8) modules may be installed for a total of 16 Compact I/O modules.

Allen Bradley Main Products:

1. SLC500:1747/1746 series
2.MicroLogix: 1761/1763/1762/1766/1764 series
3.CompactLogix: 1769/1768 series
4. The ControlLogix: 1756/1794/1760/1788 series
5. PLC-5:1771/1785 series

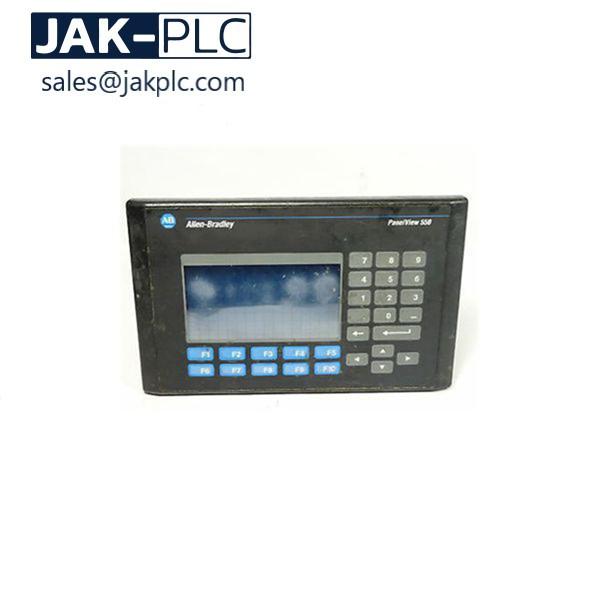

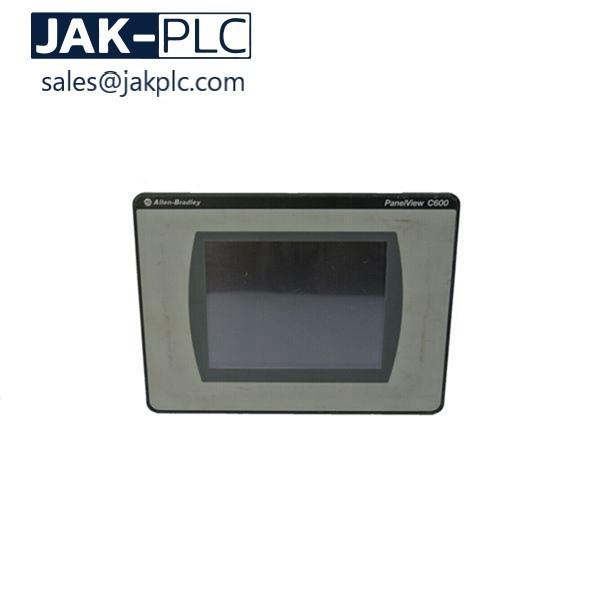

6.2711,2711P PanelView man-machine interface, touch screen, operation panel
