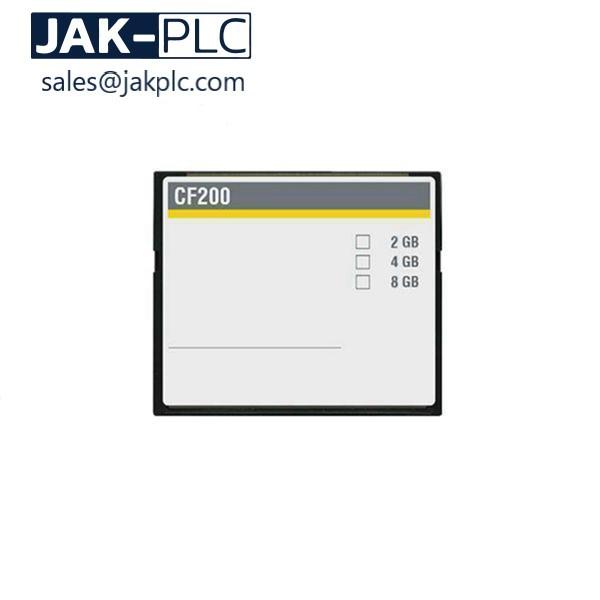

Bachmann 00016586-00 CF200/4GB UDMA CF Card

Bachman 00016586-00 CF200/4GB UDMA Compact Flash Memory Card

item no:
Bachman 00016586-00 CF200/4GB
payment:
TT Or Western Union
product origin:
Germany
good stock:
20.0
shipping port:
Dammam
lead time:
1-3 Working Days
condition:
Original New
warranty:
1 Year
certificate:
Co,Coo
product type:
Memory Media Card
system:
CF200 UDMA

Product Details
FAQs

Bachmann 00016586-00 CF200/4GB CF200 UDMA Compact Flash Memory Card in Stock

Overview

CF200/4GB UDMA 00016586-00 is CF200 UDMACompact Flash Memory. Given the high availability demands placed onautomation systems, program and data memory mustbe selected with particular care. The Compact Flashmemory cards CF200 are therefore especially selectedindustrial types that can cope with the requirementsof harsh daily working routines.Use of the CF200 both in CPUs of the M1 family andin CT and WT devices is strongly recommended dueto the extreme environmental conditions, the largenumber of supported write cycles and the many yearsof lasting experience with suppliers.

Compact Flash type Iaccording to Compact Flash specification

Memory capacity 2/4/8 GB

Very fast data transfer (UDMA)

Write protection via operating software

Extended temperature range

Long service life / MTTF

CF200 UDMA Specifications

Memory type	Compact Flash Type I
Memory capacity	2/4/8 GB
Data transfer rate	Up to 66 MB/s (UDMA 4 burst)
NAND flash type	SLC
Operating voltage	3.3 V / 5 V (automatic adaptation)
Read / write cycles	> 100,000
MTBF at 25 °C	>3,000,000 h (depending on free memory)
Vibration	20 G 20 Hz to 2 kHz
Shock	1500 G half cycle 0.5 ms

CF200 UDMA Series

Bachmann CF200/2GB UDMA 00013163-00 Compact-Flash Karte 2GB UDMA
Bachmann CF200/4GB UDMA 00016586-00 Compact-Flash Karte 4GB UDMA
Bachmann CF200/8GB UDMA 00016587-00 Compact-Flash Karte 8GB UDMA
