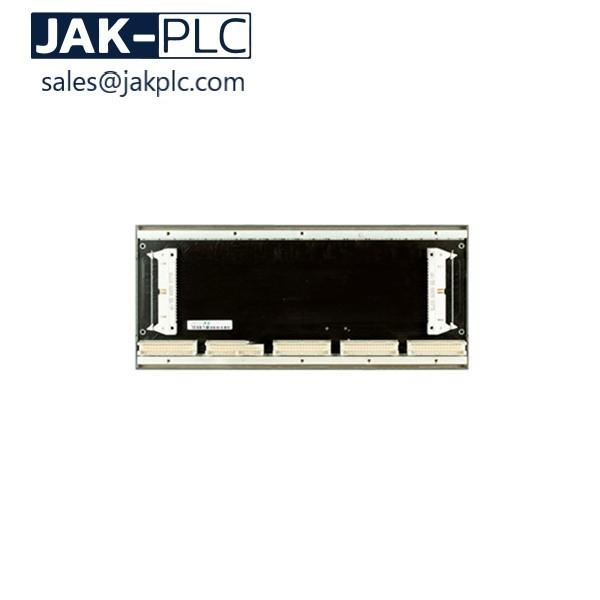

Bachmann BS206 00009792-00 Backplanes PLC Module For BS200

Bachmann Electronic BS206 00009792-00 Backplanes Module

Overview

BS206 is one of BS200 Backplanes.The backplanes BS200 interconnect theM1 controller hardware modules, such as powersupplies, CPU modules and input /output modules,mechanically and electrically. They are the backboneof the controller. The DIN rail adapters S20x aremechanically identical in construction, withoutelectrical function and they are used for solitarymodules without backplane bus and supply.

1 to 16 module slots

Seamless connection/ possible

Stabile mechanics / compact design

Vibration proof fixing of modules

Can be snapped on EN 60715 DIN rail

BS200 Backplanes in Stock

Bachman S201 00009542-00 DIN rail adapter without electrical connections; 1 slot
Bachman S202 00021588-00 DIN rail adapter without electrical connections; 2 slots
Bachman S203 00023028-00 DIN rail adapter without electrical connections; 3 slots
Bachman S205 00032172-00 DIN rail adapter without electrical connections; 5 slots
Bachman BS201 00010507-00 Backplane with 1 module slot
Bachman BS202 00009802-00 Backplane with 2 module slots
Bachman BS203 00009313-00 Backplane with 3 module slots
Bachman BS204 00009752-00 Backplane with 4 module slots
Bachman BS205 00009206-00 Backplane with 5 module slots
Bachman BS206 00009792-00 Backplane with 6 module slots
Bachman BS207 00009207-00 Backplane with 7 module slots
Bachman BS208 00009793-00 Backplane with 8 module slots
Bachman BS209 00009634-00 Backplane with 9 module slots
Bachman BS210 00009794-00 Backplane with 10 module slots
Bachman BS211 00009795-00 Backplane with 11 module slots
Bachman BS212 00009796-00 Backplane with 12 module slots
Bachman BS213 00009797-00 Backplane with 13 module slots
Bachman BS214 00009798-00 Backplane with 14 module slots
Bachman BS215 00009799-00 Backplane with 15 module slots
Bachman BS216 00009800-00 Backplane with 16 module slots
